Fendt Farmer 308LS Transmission


Fendt Farmer 308LS tractor photo
1980 - 1990
Farmer 300 Series
Row-Crop tractor
Series:Farmer 306LSFarmer 308LSFarmer 309LS
Transmissions overview
15-speed synchromesh
21-speed
Transmission
Type:synchromesh
Gears:15 forward and 4 reverse
Clutch:310mm hydraulic disc
Three gears (1-3), plus reverse (R), in two ranges (low/high) with two-speed torque converter (L/S). Additional three overdrive gears for road speed.
Speeds

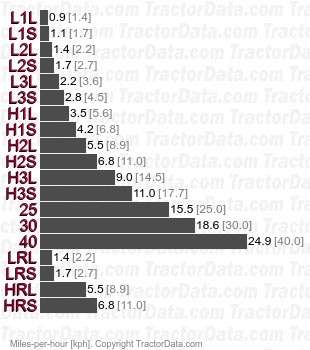

Farmer 308LS  synchromesh speeds
Transmission
Gears:21 forward and 6 reverse
Three gears (1-3), plus reverse (R), in two ranges (low/high) with three-speed torque converter (L/M/S). Additional three overdrive gears for road speed.
