International Harvester 633

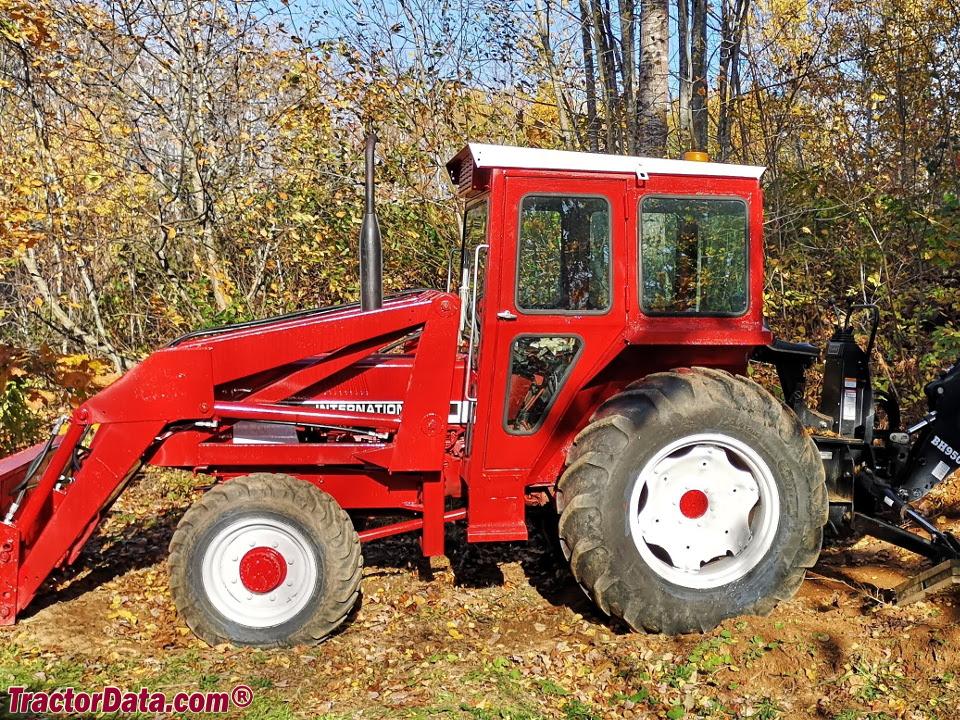

International Harvester 633 tractor photo
1975 - 1978   33 Series
Utility tractor
Series next:International Harvester 733
Series back:International Harvester 533






Production:

Manufacturer:International Harvester
Factory:Neuss, Germany


Variants:

633:utility
633E:narrow
633V:vineyard


International Harvester 633 Engine:

   International Harvester 2.9L 3-cyl diesel
full engine details ...


Capacity:

Fuel:15.85 gal [60.0 L]
Hydraulic system:3.2 gal [12.1 L]


3-Point Hitch:

Rear Type:II
Rear lift:3969 lbs [1800 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540


Dimensions & Tires:

2WD Wheelbase:81.5 inches [207 cm]
4WD Wheelbase:79.9 inches [202 cm]
Weight:5158 to 5589 pounds
Front tire:6.50-16
2WD Rear tire:12.4/11-36
full dimensions and tires ...


633 Serial Numbers:


how to read serial numbers...



International Harvester 633 Power:

Engine:52 hp [38.8 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Brakes:disc
Cab:Open operator station. Cab optional with heater.


Hydraulics:

Capacity:3.2 gal [12.1 L]
Pump flow:8.6 gpm [32.6 lpm]


Electrical:

Charging system:alternator


Battery:

Volts:12
