Tractors > AGCO Allis > 9745

AGCO Allis 9745 - tests

AGCO Allis 9745 tractor photo
1998 - 2001   9700 Series
Row-Crop tractor
Series next:AGCO Allis 9755
Series back:AGCO Allis 9735
more AGCO Allis 9745 specifications...






OCED Tractor Test 1752:

Nebraska summary:270

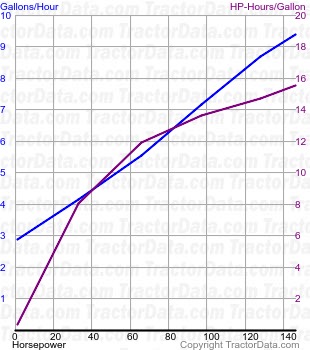

9745 fuel use from test 270
Test Date:October 6 - 10, 1998
Type:Diesel 18-speed 4WD
PTO power (max):157.90 hp [117.7 kW]
PTO fuel use (max):9.2 gal/hour [34.8 l/hour]
PTO power (rated engine speed):146.00 hp [108.9 kW]
PTO fuel use (engine speed):9.4 gal/hour [35.6 l/hour]
PTO power (rated PTO speed):152.21 hp [113.5 kW]
PTO fuel use (PTO speed):9.4 gal/hour [35.6 l/hour]
Drawbar power (max):131.75 hp [98.2 kW]
Drawbar fuel use (max):9.5 gal/hour [36.0 l/hour]
Drawbar pull (max):15,017 lbs [6811 kg]
Max pull gear:5
Test report:PDF file
