Deutz D 4006
| | 1968 - 1981 |
| 06 Series | | Utility tractor |
|
| Production |
| Manufacturer: | Deutz
|
| Type: | Utility tractor
|
| Variants |
| D 4006: | 2WD
|
| D 4006A: | 4WD
|
| Deutz D 4006 Power |
| Engine: | 35 hp
26.1 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| 2WD Steering: | manual
|
| 4WD Steering: | hydraulic power
|
| Cab: | ROPS optional. Optional cab with heater.
|
| Transmissions: | 8-speed
|
| | 12-speed
|
 Transmission details ... |
| Hydraulics |
| Pump flow: | 6.7 gpm
25.4 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Rear lift (at ends): | 3440 lbs
1560 kg
|
| Power Take-off (PTO) |
| Rear PTO: | live*Dual-stage clutch
|
| | independent*Optional
|
| Rear RPM: | 540
|
| | 540/1000*Optional
|
| Page information |
| Last update: | December 31, 2021
|
| Copyright: | Copyright 2022 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2022 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

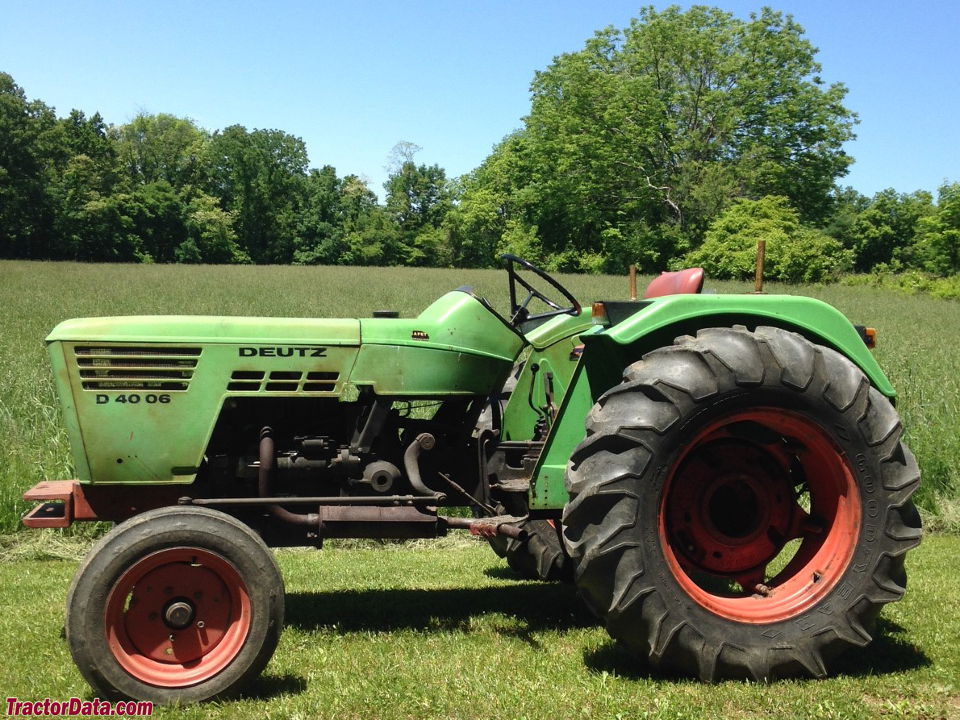

Deutz D 4006 photos...
Full dimensions and tires ...
