Deutz D 3006

Deutz D 3006 tractor photo
1967 - 1981






Production:

Manufacturer:Deutz


Deutz D 3006 Engine:

   Deutz 1.9L 2-cyl diesel
full engine details ...


Capacity:

Fuel:18.5 gal [70.0 L]


Power Take-off (PTO):

Rear PTO:live
Rear RPM:540


Dimensions & Tires:

Wheelbase:73.4 inches [186 cm]
Weight:4,120 lbs [1868 kg]
Front tire:6.00-16
Rear tire:11-28
full dimensions and tires ...


D 3006 Serial Numbers:

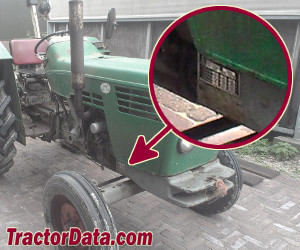

Location:Front-right of tractor frame, above front axle.

- Serial numbers unknown -



Deutz D 3006 Power:

Engine:30 hp [22.4 kW]


Mechanical:

Chassis:4x2 2WD
Cab:Cab optional with heat.


Hydraulics:

Pump flow:3.17 gpm [12.0 lpm]


Belt Pulley:

Diameter:9.6 inches [24 cm]
Width:3.9 inches [9 cm]
RPM:1280
Speed:3250 ft/min [990.60 meters/min]
