Deutz-Fahr DX 4.30

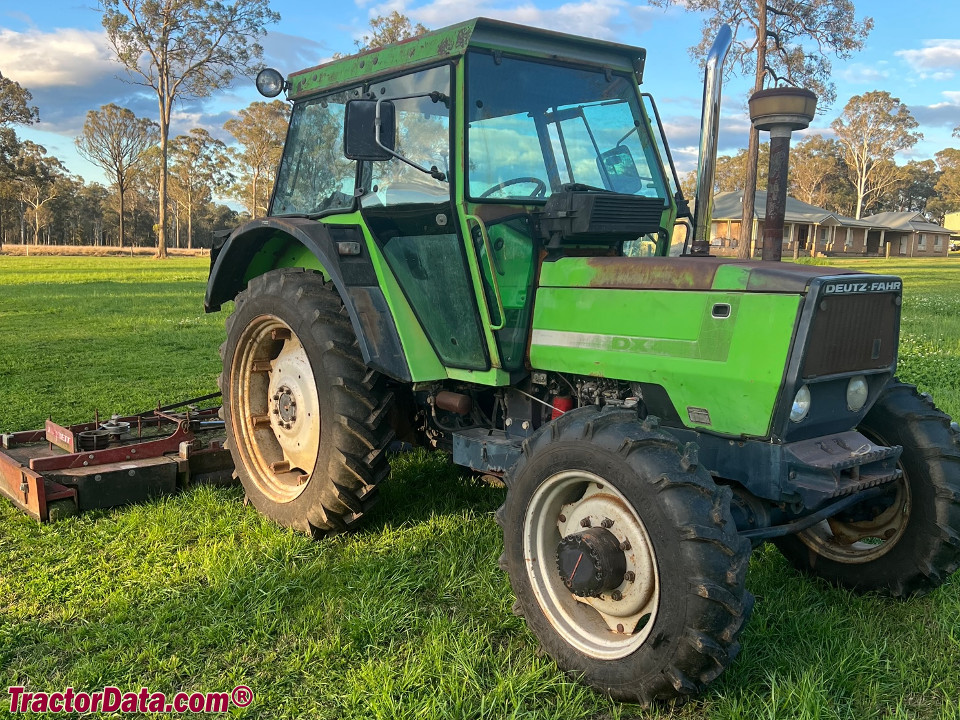

Deutz-Fahr DX 4.30 tractor photo
1983 - 1989
DX4 Series
Utility tractor
Series:DX 4.10DX 4.30DX 4.50
Production
Manufacturer:Deutz-Fahr
Type:Utility tractor
Deutz-Fahr DX 4.30 Power
Engine:73.8 hp
55.0 kW
Deutz-Fahr DX 4.30 Engine
Deutz 4.1L 4-cyl diesel
Fuel tank:31.7 gal
120.0 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Brakes:hydraulic drum
Transmissions:15-speed synchronized
 20-speed creeper
Transmission details ...
Photos
No photos of the Deutz-Fahr DX 4.30 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Pressure:2538 psi
175.0 bar
Pump flow:10.6 gpm
40.1 lpm
Tractor hitch
Rear Type:II
Rear lift:8385 lbs
3803 kg
Front Hitch:II
Front lift:3968 lbs
1799 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Front PTO:independent
Front RPM:1000
Dimensions & Tires
2WD Wheelbase:91.7 inches
232 cm
4WD Wheelbase:94.5 inches
240 cm
Weight:7937 to 8642 pounds
Front tire:9.00-16
2WD Rear tire:18.4-34
Full dimensions and tires ...
