Tractors > Fiat > 100-90

Fiat 100-90 - transmission

Fiat 100-90 tractor photo
1984 - 2002   90 Series
Series next:Fiat 110-90
Series back:Fiat 90-90
more Fiat 100-90 specifications...






Transmission:

Type:synchronized
Gears:15 forward and 3 reverse
Clutch:dry disc
Five gears, plus reverse, in three ranges. A 40 KPH gearbox was available with four-wheel drive.

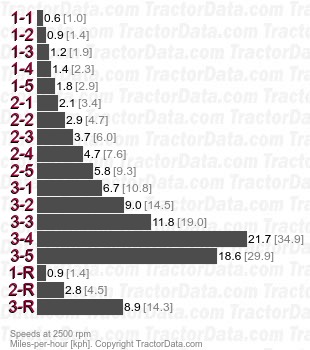

Speeds:
100-90  synchronized speeds


Transmission:

Type:creeper
Gears:20 forward and 4 reverse
Clutch:dry disc
