Fiat 1180 Transmission


Fiat 1180 tractor photo
1979 - 1984
80 Series
Row-Crop tractor
Series map:
1180
1280
85.8kw
91.7kw
Transmission options
12-speed
24-speed creeper
12-speed mechanical shuttle
Transmission
Gears12 forward and 4 reverse
Clutch355.6 cerametallic dry disc

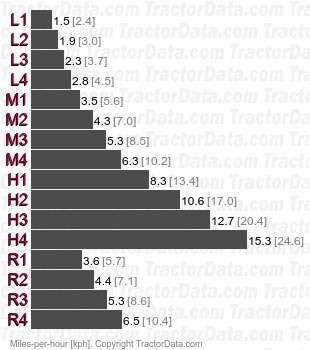

Four gears (1-4) in three ranges (low, medium, and high) plus reverse range.
Transmission
Typecreeper
Gears24 forward and 8 reverse
Clutch355.6 cerametallic dry disc
Four gears (1-4) in three ranges (low, medium, and high) plus reverse range with additional creeper range.
Transmission
Typemechanical shuttle
Gears12 forward and reverse
Clutch355.6 cerametallic dry disc
Four gears (1-4) in three ranges (low, medium, and high) with mechanical shuttle.
