Fiat 1000 Super

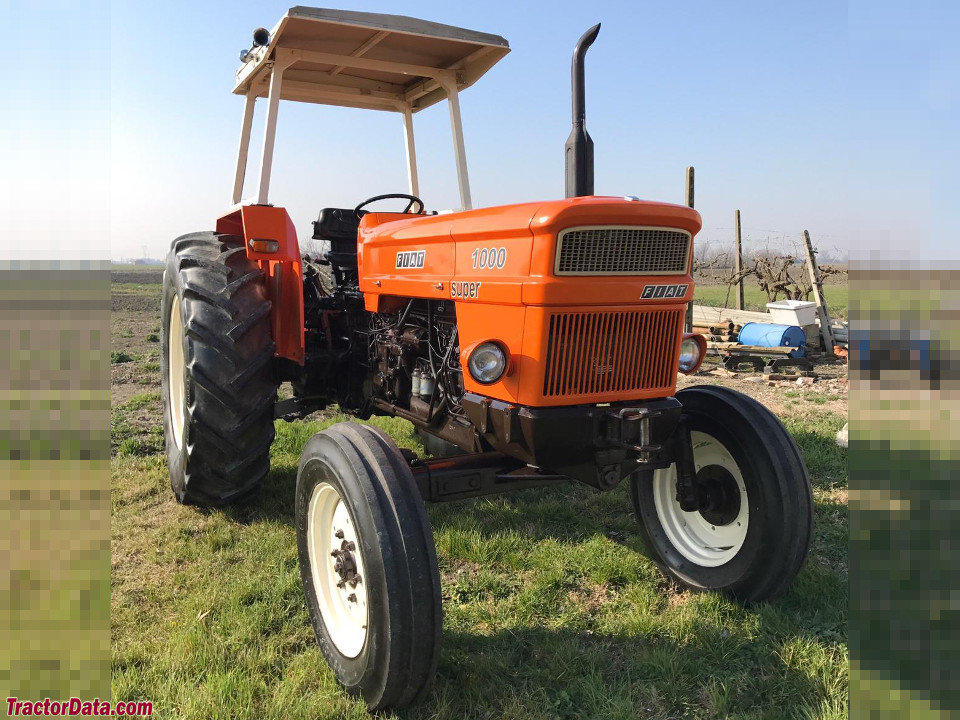

Fiat 1000 Super tractor photo
1976 - 1979
Row-Crop tractor
Production
Manufacturer:Fiat
Type:Row-Crop tractor
Variants
1000 Super:two-wheel drive
1000DT Super:four-wheel drive
Fiat 1000 Super Power
Engine:108.5 hp
80.9 kW
Fiat 1000 Super Engine
Fiat 5.5L 6-cyl diesel
Fuel tank:30.4 gal
115.1 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:inboard planetary
Differential lock:mechanical rear
Steering:power
Brakes:wet disc
Cab:Open operator station. Four-post ROPS and cab available.
Transmissions:12-speed
 16-speed creeper
Transmission details ...
Hydraulics
Type:open center
Pump flow:11.1 gpm
42.0 lpm
Tractor hitch
Rear Type:II
Control:position and lower-link draft control
Rear lift:7056 lbs
3200 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Engine RPM:540@2093
1000@2250
Dimensions & Tires
2WD Wheelbase:97.6 inches
247 cm
4WD Wheelbase:99.2 inches
251 cm
Weight:7561 to 8488 pounds
Front tire:7.50-20
2WD Rear tire:16.9/14-38
Full dimensions and tires ...
Electrical
Charging system:alternator
Battery volts:12
