Fiat 450 Transmission


Fiat 450 tractor photo
1968 - 1981
Transmissions overview
8-speed gear
9-speed partically synchronized
12-speed creeper
Transmission
Type:gear
Gears:8 forward and 2 reverse
Four gears (1-4), plus reverse (R), in two ranges (low/high).
Speeds
With 12-28 rear tires.
450  gear speeds
Transmission
Type:partically synchronized
Gears:9 forward and 3 reverse
Clutch:254mm dry disc
Gear parts 2/3, 5/6, and 8/9 are synchronized.
Speeds
With 12.4/11-28 rear tires

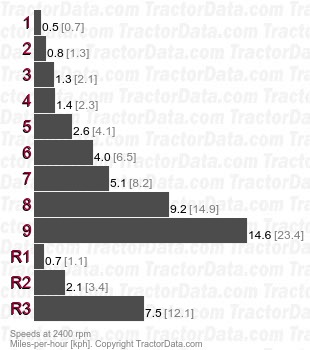

450  partically synchronized speeds
Transmission
Type:creeper
Gears:12 forward and 3 reverse
Optional creeper for the 8-speed transmission add an additional lower range.
Speeds
With 12-28 rear tires.
450  creeper speeds
