Tractors > Fiat > 415

Fiat 415

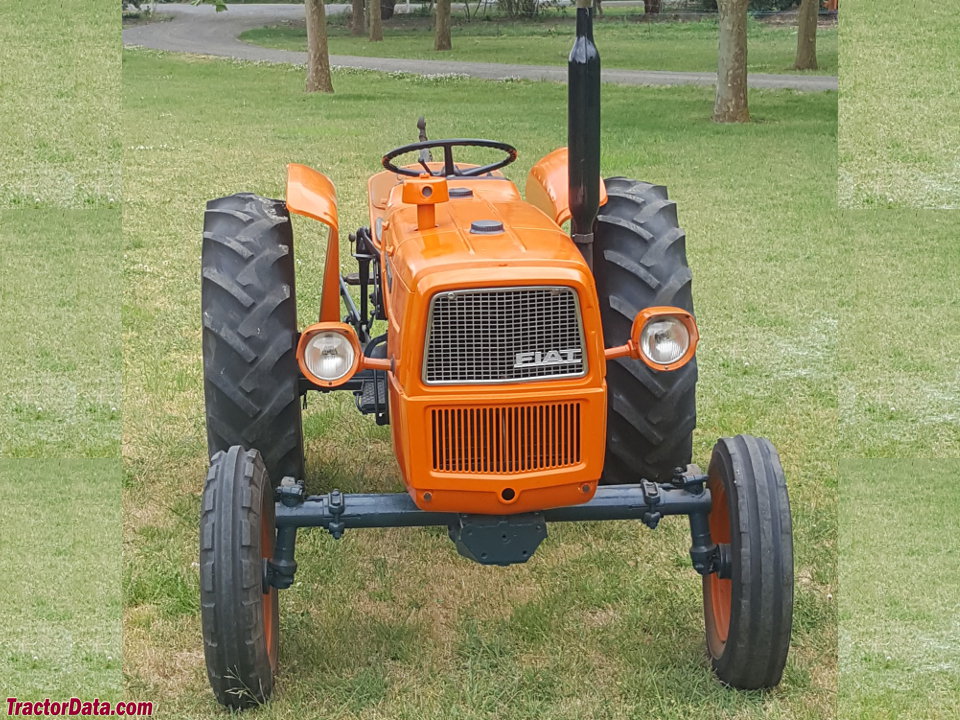

Fiat 415 tractor photo
1965 - 1968
Next model:Oliver 1250






Production:

Manufacturer:Fiat


Fiat 415 Engine:

   Fiat 2.3L 4-cyl diesel
full engine details ...


Capacity:

Fuel:13.2 gal [50.0 L]


3-Point Hitch:

Rear lift:2646 lbs [1200 kg]


Power Take-off (PTO):

Rear PTO:live (two-stage cluch)
Rear RPM:540


Dimensions & Tires:

Wheelbase:75.5 inches [191 cm]
Weight:3505 to 4057 pounds
Front tire:6.00-16
Rear tire:12.4-28
full dimensions and tires ...


415 Serial Numbers:


- Serial numbers unknown -



Fiat 415 Power:

Engine:44 hp [32.8 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Cab:Open operator station.


Hydraulics:

Pump flow:4.9 gpm [18.5 lpm]


Electrical:

Ground:negative
Charging system:generator
Charging amps:8
Charging volts:24


Battery:

Number:2
Volts:12
