Fiat 315 Transmission


Fiat 315 tractor photo
1965 - 1968
Transmissions overview
6-speed gear
9-speed creeper
Transmission
Type:gear
Gears:6 forward and 2 reverse
Three gears, plus reverse, in two ranges.
Speeds
315  gear speeds
Transmission
Type:creeper
Gears:9 forward and 3 reverse
Optional creeper adds an additional low range to the base transmission.
Speeds

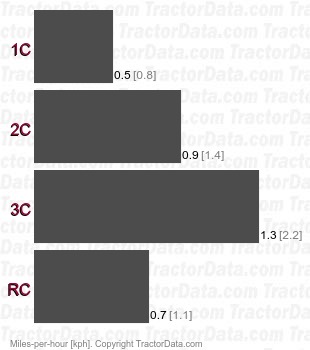

315  creeper speeds
