Tractors > John Deere > 6110

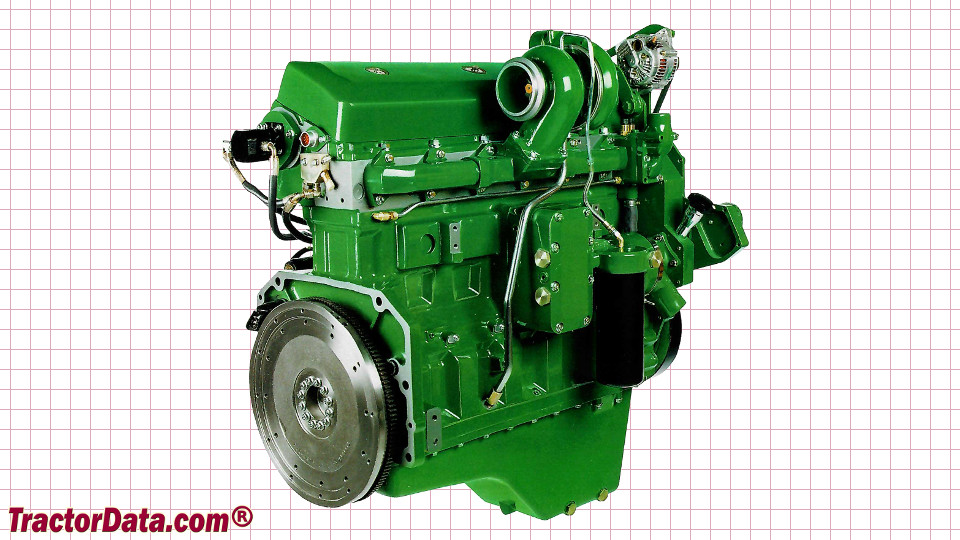

John Deere 6110 - engine

John Deere 6110 tractor photo
1998 - 2001   6000 TEN Series
Utility tractor
Next model:John Deere 6120
Series next:John Deere 6210
more John Deere 6110 specifications...






Engine Detail:

 John Deere 4045TL053
 turbocharged diesel
 4-cylinder
 liquid-cooled
 276 ci [4.5 L]
Bore/Stroke:4.19x5.00 inches [106 x 127 mm]
Power:84 hp [62.6 kW]
Compression:16.9:1
Rated RPM:2300
Torque:255 lb-ft [345.8 Nm]
Torque RPM:1100
Firing order:1-3-4-2
Starter volts:12
Starter power:4.2 hp [3.1 kW]
Oil capacity:12.7 qts [12.0 L]
Coolant capacity:11.6 qts [11.0 L]
Intake valve clearance:0.014 inches [0.356 mm]
Exhaust valve clearance:0.018 inches [0.457 mm]
