Tractors > Cub Cadet > 5234D

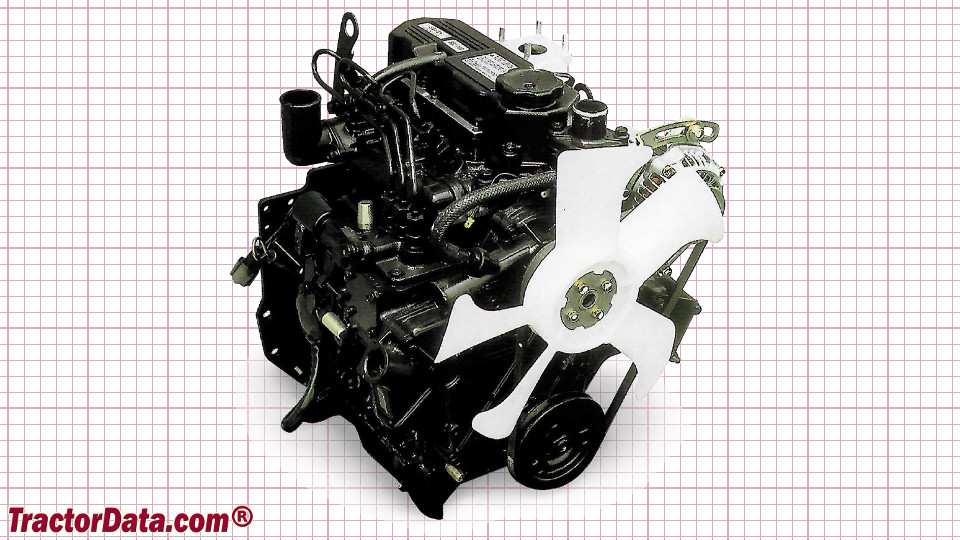

Cub Cadet 5234D - engine

Cub Cadet 5234D tractor photo
2004 - 2008   5000 Series
Sub-Compact Utility tractor
Series next:Cub Cadet 5264
Series back:Cub Cadet 5254
more Cub Cadet 5234D specifications...


Engine Detail:

 liquid-cooled OHV
 51.8 ci [0.8 L]
Bore/Stroke:2.68x3.07 inches [68 x 78 mm]
Power:23 hp [17.2 kW]
Fuel system:indirect injection
Rated RPM:3600
Idle RPM:1200-3600
Starter volts:12

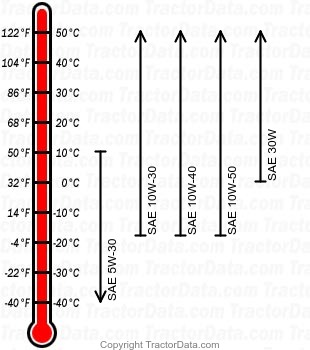

Oil capacity:3.5 qts [3.3 L]
Oil change:150 h
Coolant capacity:5.3 qts [5.0 L]
Intake valve clearance:0.008 inches [0.203 mm] (cold)
Exhaust valve clearance:0.008 inches [0.203 mm] (cold)
