Tractors > Cub Cadet > 5264

Cub Cadet 5264 Engine



Cub Cadet 5264 tractor photo
2006 - 2008
5000 Series
Sub-Compact Utility tractor
Series map:
5234D
5264
23.0hp
26.0hp
Engine Detail
Daihatsu
diesel
3-cylinder
liquid-cooled
Displacement58.1 ci
1.0 L
Bore/Stroke2.834x3.07 inches
72 x 78 mm
Power26 hp
19.4 kW
Fuel systemmechanical
Rated RPM3600
Idle RPM1500-3600
Starter volts12
Coolant capacity5.3 qts
5.0 L
Intake valve clearance0.008 inches (cold)
0.203 mm
Exhaust valve clearance0.008 inches (cold)
0.203 mm
Engine Oil

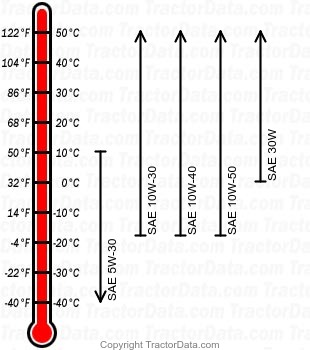

5264 diesel engine oil chart
Oil capacity3.5 qts
3.3 L
Oil change150 h
