Kubota L3430

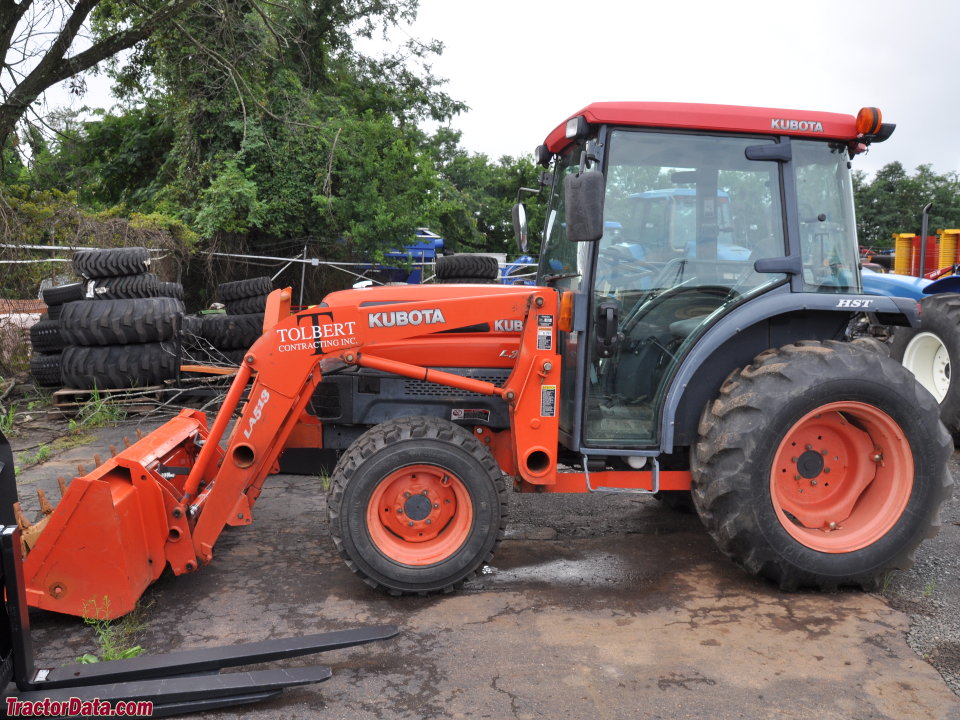

Kubota L3430 tractor photo
2003 - 2007
L30 Series
Compact Utility tractor
Series map:
L3130
L3430
L3830
32.1hp
35.1hp
39.0hp
Production
ManufacturerKubota
Compact Utility tractor
Variants
L3430DT4WD 8 speed
L3430GST4WD 12 speed
L3430HSThydro
L3430HSTChydro cab
Kubota L3430 Engine
Kubota 1.6L 3-cyl diesel
Fuel tank10.6 gal
40.1 L
Engine details ...
Kubota L3430 Transmissions
hydrostatic
8-speed fully synchronized
12-speed power shift
Transmission details ...
Kubota L3430 Power
Engine (gross)35.1 hp
26.2 kW
Engine (net)33.6 hp
25.1 kW
GST PTO (claimed)28.5 hp
21.3 kW
Hydro PTO (claimed)27 hp
20.1 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS. Grand Cab optional.
Hydraulics
Typeopen center
Valves3 OptOptional
Pump flow8.3 gpm
31.4 lpm
Total flow13.2 gpm
50.0 lpm
Steering flow4.9 gpm
18.5 lpm
Tractor hitch
Rear TypeI
Controlposition control with optional draft control
Rear lift (at 24"/610mm)2650 lbs
1202 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Mid PTOindependent OptOptional
Mid PTO Type2000
Dimensions & Tires
Wheelbase71.1 inches
180 cm
Weight3305 lbs
1499 kg
Front tire7.2-16
Rear tire12.4-24
Full dimensions and tires ...
Kubota L3430 attachments
72" mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...
L3430 Serial Numbers
Location:Serial number decal on the left side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps40
Cab Charging amps60
Battery volts12
References
L3430 references literature
Grand L 30 Series published in 2004, by Kubota*
*Publication contains known errors.
