Kubota M6040

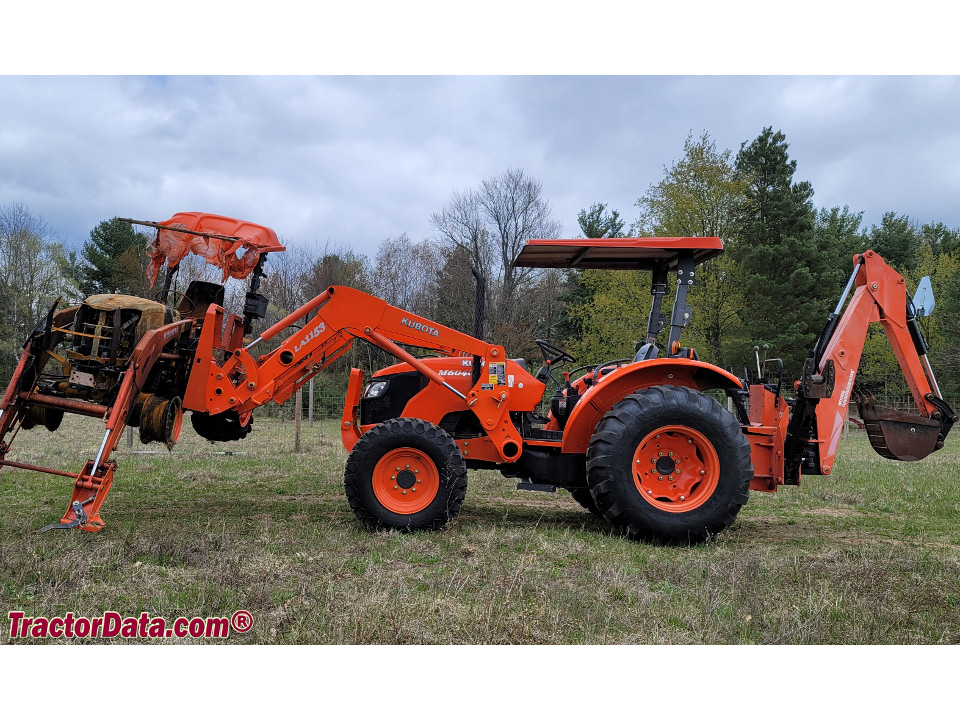

Kubota M6040 tractor photo
2007 - 2013
Utility tractor
Series map:
M5140
M6040
M7040
52.0hp
62.0hp
71.0hp
Production
ManufacturerKubota
Utility tractor
Original price was $23,623 in 2011
Variants
M6040HDNnarrow chassis
M6040F2WD ROPS sync-shuttle
M6040FC2WD cab sync-shuttle
M6040DT4WD ROPS sync-shuttle
M6040HD4WD ROPS hyd-shuttle
M6040DTC4WD cab sync-shuttle
M6040HDC4WD cab hyd-shuttle
Kubota M6040 Engine
Kubota 3.3L 4-cyl diesel
Engine details ...
Kubota M6040 Transmissions
8-speed partially synchronized
8-speed power shuttle
Transmission details ...
Kubota M6040 Power
Engine (net)63.5 hp
47.4 kW
PTO (claimed)56 hp (late)
41.8 kW
 55 hp (early)
41.0 kW
Mechanical
Two- or four-wheel drive
Differential lockmechanical rear
Power steering
Mechanical wet disc brakes
Two-post foldable ROPS with optional canopy. Ultra Grand Cab optional with heat and air-conditioning
Capacity
ROPS Fuel18.5 gal
70.0 L
Cab Fuel23.8 gal
90.1 L
Hydraulic system15 gal
56.8 L
Front axle8.5 qts
8.0 L
Hydraulics
Typeopen center
Capacity15 gal
56.8 L
Pressure2770 psi
191.0 bar
Valves1 to 3
Pump flow11 gpm
41.6 lpm
Total flow17 gpm
64.3 lpm
Steering flow6.1 gpm
23.1 lpm
Tractor hitch
Rear TypeII/I
Rear lift (at ends)4200 lbs
1905 kg
Rear lift (at 24"/610mm)3307 lbs
1500 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Engine RPM540@2295
Dimensions & Tires
Wheelbase80.7 inches (4WD ROPS)
204 cm
 82.1 inches (2WD ROPS)
208 cm
 83.1 inches (4WD cab)
211 cm
 84.4 inches (2WD cab)
214 cm
Weight4650 to 5445 pounds
Front tire7.50-16
Rear tire16.9-28 (2WD)
Full dimensions and tires ...
Electrical
Groundnegative
ROPS Charging amps45
Cab Charging amps60
Battery CCA900
Battery volts12
References
M6040 references literature
M6040/M7040/M8540/M9540 published in 2018, by Kubota
M5040/M6040/M7040/M8540/M9540 published in 2005, by Kubota
M6040/M7040/M8540/M9540 (3C043-9971-2) published in 2006
New Product Guide M-Series Tractors published in 2005, by Kubota
