Tractors > Kubota > L4740

Kubota L4740 - transmission

Kubota L4740 tractor photo
2007 - 2013   L40 Series
Compact Utility tractor
Previous model:Kubota L4630
Next model:Kubota L4760
Series next:Kubota L5040
Series back:Kubota L4240
more Kubota L4740 specifications...






Transmission:

Transmission:HST Plus
Type:hydrostatic
Gears:infinite (3-range) forward and reverse
Oil capacity:45.6 qts [43.2 L]
Controlled by treadle foot pedal, cruise control standard with left-hand lever. Three range with Hydro Dual Speed, a high/low power shift controlled by left-hand lever. Auto Hydro Dual speed allows automatic control to match load. Stall Guard maintains engine RPMs by reducing speed under load. HST Response Control adjusts acceleration rates. Auto Throttle Advance links engine RPMs to transmission, so that the throttle increases when speed is increased.
Speeds:
L4740 HST Plus hydrostatic speeds

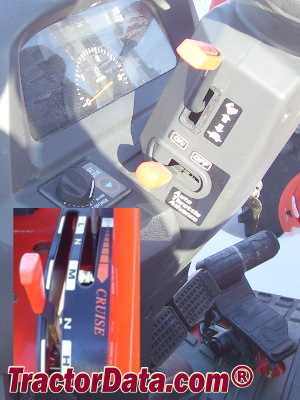

Kubota L4740 HST Plus transmission photo



Transmission:

Transmission:Glide Shift (GST)
Type:power shift
Gears:12 forward and 8 reverse
Oil capacity:45.6 qts [43.2 L]
Speeds:

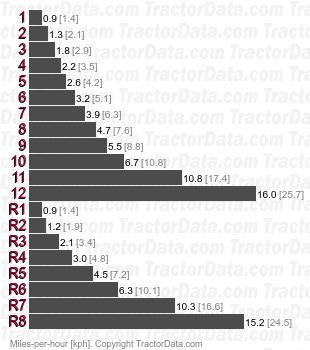

L4740 Glide Shift (GST) power shift speeds
