Fordson Power Major Engine


Fordson Power Major tractor photo
1958 - 1961
Series map:
Power Major
39.4kw*
*Estimated engine power for comparison only.
Engines overview
Ford 3.6L 4-cyl diesel
Ford 3.3L 4-cyl gasoline
Engine Detail
Ford
diesel
4-cylinder
liquid-cooled
Displacement220 ci
3.6 L
Bore/Stroke3.937x4.524 inches
100 x 115 mm
Air cleaneroil bath
Compression16.1:1
Rated RPM1600
Firing order1-2-4-3
Starterelectric
 inertia starter optional
Starter volts12
Oil capacity7.2 qts
6.8 L
Coolant capacity14.4 qts
13.6 L
Fordson Power Major Engine

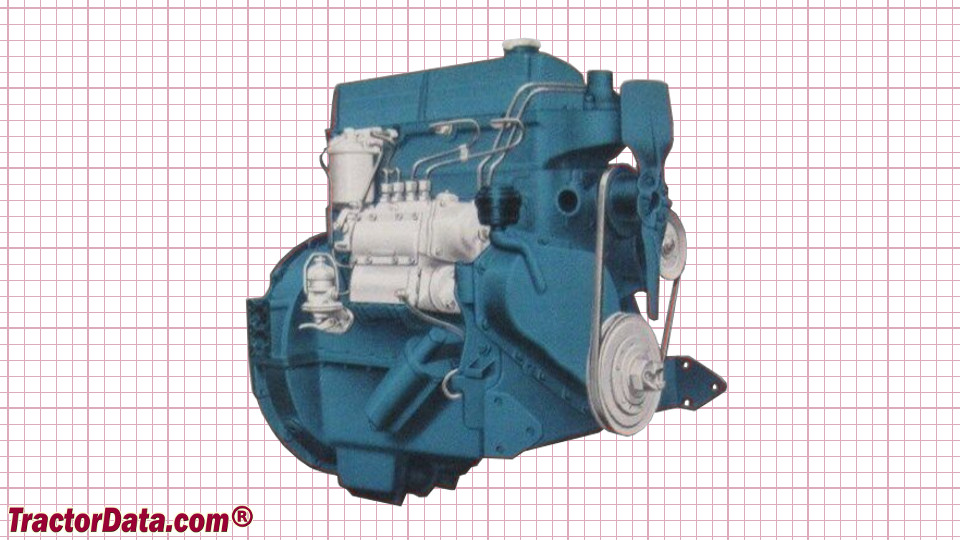

Fordson Power Major engine image
Engine Detail
Ford
gasoline
4-cylinder
liquid-cooled
Displacement199 ci
3.3 L
Bore/Stroke3.74x4.524 inches
95 x 115 mm
Compression5.9:1
Rated RPM1600
Firing order1-2-4-3
Starter volts12
Oil capacity7.2 qts
6.8 L
Sparkplug gap0.025 inches
0.635 mm
Point gap0.015 inches
0.381 mm
