Tractors > J.I. Case > 641

J.I. Case 641

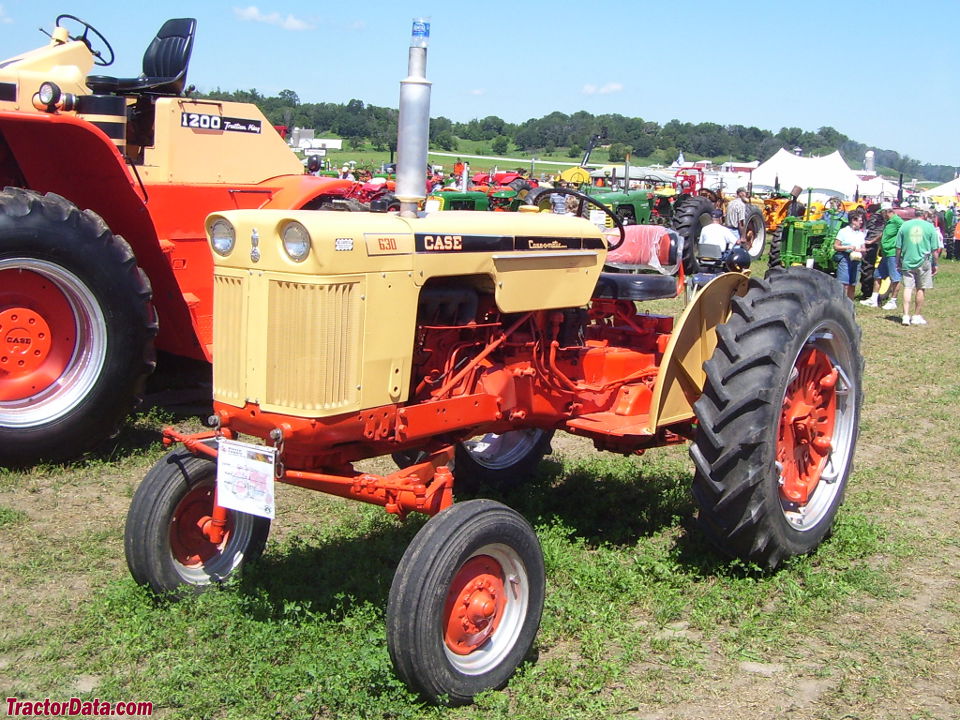

J.I. Case 641 tractor photo
1960 - 1963   630 Series
Row-Crop tractor






Production:

Manufacturer:J.I. Case
Factory:Rock Island, Illinois, USA
 Racine, Wisconsin, USA


Variants:

630:diesel standard
631:diesel row-crop
640:gas standard
641:gas row-crop


J.I. Case 641 Engines:

   J.I. Case 3.1L 4-cyl gasoline
   J.I. Case 3.1L 4-cyl LP gas
full engine details ...


Capacity:

Fuel:22 gal [83.3 L]


Rear Hitch:

Type:Case Eagle Hitch


Power Take-off (PTO):

Rear PTO:continuous
 independent (Case-o-matic)
Rear RPM:540 (1.375)
 540/1000 (1.375)


Dimensions & Tires:

Front tire:6.00x15
Rear tire:12.4x36
full dimensions and tires ...


641 Serial Numbers:

Location:Serial number plate on the left side of the tractor's dashboard.

- Serial numbers unknown -



J.I. Case 641 Power:

Belt (claimed):52 hp [38.8 kW]
Drawbar (tested):43.25 hp [32.3 kW]
PTO (tested):50.61 hp [37.7 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Steering:power assist
Brakes:differential mechanical dry disc
Cab:Open operator station.


Hydraulics:

Type:Dual-Control


Belt Pulley:

Diameter:9.25 inches [23 cm]
Width:6 inches [15 cm]


Battery:

Number:1
Volts:12
