CaseIH MXU100

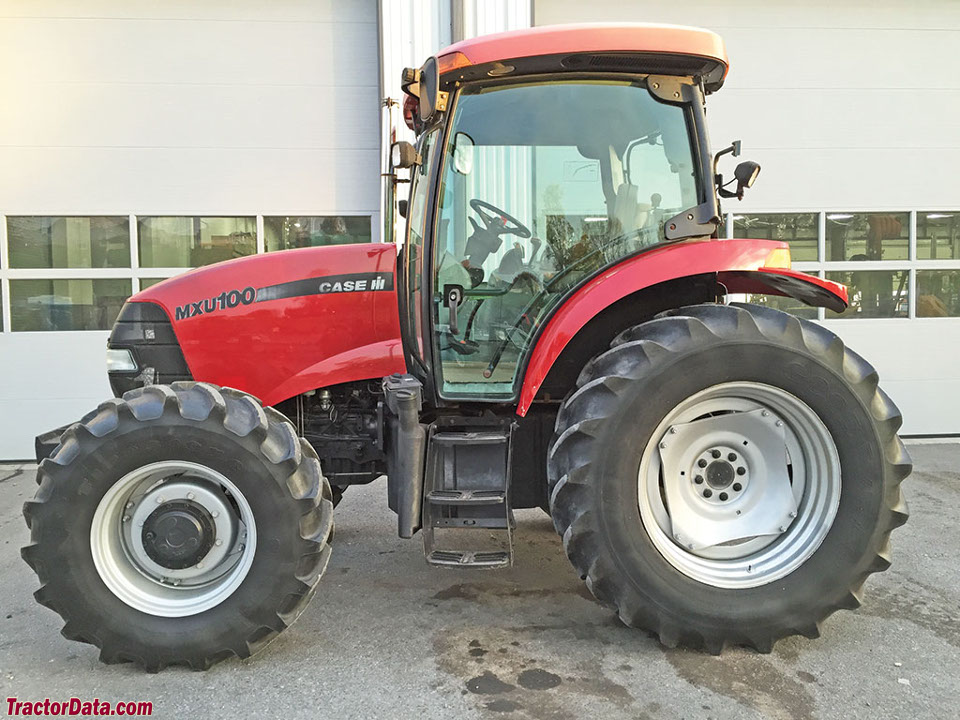

CaseIH MXU100 tractor photo
2004 - 2006
MXU Maxxum Series
Utility tractor
Series map:
MXU100
MXU110
100.0hp
115.0hp
Production
ManufacturerCaseIH
Utility tractor
Built in Basildon, England
Original price was $39,100 in 2005
Variants
TS100Asimilar New Holland model
CaseIH MXU100 Engine
CNH 4.5L 4-cyl diesel
Fuel tank46.7 gal
176.8 L
Engine details ...
CaseIH MXU100 Transmissions
24-speed partial powershift
16-speed partial powershift
12-speed
Transmission details ...
CaseIH MXU100 Power
Engine (gross)100 hp
74.6 kW
PTO (claimed)80 hp
59.7 kW
Drawbar (tested)74.7 hp
55.7 kW
PTO (tested)87.7 hp
65.4 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesplanetary inboard
Differential lockelectro-hydraulic rear standard
 front optional
Power steering
Differential hydraulic wet disc brakes
Cab optional
Hydraulics
Typepressure-flow compensated optional (PFC)
Pressure2974 psi
205.1 bar
 3118 psi (PFC)
215.0 bar
Rear valves2 to 4
Pump flow19.8 gpm
74.9 lpm
 26.5 gpm (PFC)
100.3 lpm
Total flow30.3 gpm
114.7 lpm
 37 gpm (PFC)
140.0 lpm
Steering flow10.5 gpm
39.7 lpm
Tractor hitch
Rear TypeII (ROPS)
 II/IIIN (cab)
Controlmechanical lower link (ROPS)
 electronic draft control (cab)
Rear lift9,285 lbs
4211 kg
 12,185 lbs (with cab)
5527 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic wet plates
Rear RPM540/1000
Engine RPM540@1969
1000@2120
Dimensions & Tires
2WD Wheelbase93.3 inches
236 cm
4WD Wheelbase94.9 inches
241 cm
Weight9060 to 11200 pounds
Front tire7.50x16
2WD Rear tire16.9R38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps70
Cab Charging amps120
Battery CCA1300
Battery volts12
References
MXU100 references literature
MXU Series Maxxum Tractors published in 2004, by CaseIH
MXU Series Maxxum Tractors published in 2005, by CaseIH
