Tractors > CaseIH > MXM190 Maxxum

CaseIH MXM190 Maxxum - tests

CaseIH MXM190 Maxxum tractor photo
2002 - 2007   Maxxum Series
Row-Crop tractor
Series back:CaseIH MXM175
more CaseIH MXM190 Maxxum specifications...






OCED Tractor Test 2145:

Nebraska summary:439

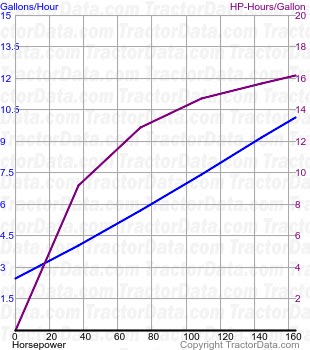

MXM190 Maxxum fuel use from test 439
Test Date:November 1, 2003 - April 1, 2004
Type:19-speed 4WD
PTO power (max):172.1 hp [128.3 kW]
PTO fuel use (max):9.7 gal/hour [36.7 l/hour]
PTO power (rated engine speed):163.6 hp [122.0 kW]
PTO fuel use (engine speed):10.1 gal/hour [38.2 l/hour]
PTO power (rated PTO speed):167.4 hp [124.8 kW]
PTO fuel use (PTO speed):10.2 gal/hour [38.6 l/hour]
Drawbar power (max):137.6 hp [102.6 kW]
Drawbar fuel use (max):10.4 gal/hour [39.4 l/hour]
Drawbar pull (max):17,465 lbs [7922 kg]
Max pull gear:2
Test report:PDF file
