CaseIH MXM175 Maxxum Tests


CaseIH MXM175 Maxxum tractor photo
2002 - 2007
Maxxum Series
Row-Crop tractor
MX170
Series:MXM155MXM175 MaxxumMXM190
OCED Tractor Test 2143

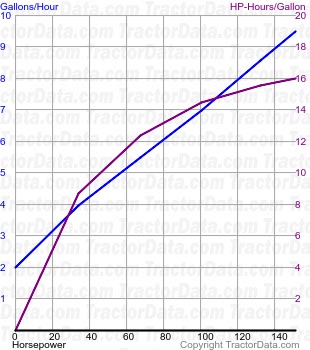

MXM175 Maxxum fuel use from test 437
OCED Tractor Test 2143
Diesel 19-speed 4WD
September 1, 2003 - April 1, 2004
Link: OCED Tractor Test 2143 file
PTO performance
Max power:160.8 hp
119.9 kW
Fuel use:9.0 gal/hour
34.1 l/hour
Power at rated engine speed:151.3 hp
112.8 kW
Fuel use:9.5 gal/hour
36.0 l/hour
Power at rated PTO speed:154.2 hp
115.0 kW
Fuel use:9.4 gal/hour
35.6 l/hour
Drawbar performance
Max power:123.6 hp
92.2 kW
Fuel use:9.5 gal/hour
36.0 l/hour
Gear 9 used for power test.
