CaseIH MXM140 Maxxum
|
|
| Production | |
| Manufacturer | CaseIH |
| Row-Crop tractor | |
| Built in Basildon, England | |
| CaseIH MXM140 Engine | |
| CNH 7.5L 6-cyl diesel | |
 Engine details ... |
| CaseIH MXM140 Transmission | |
| 18-speed partial power shift | |
 Transmission details ... |
| CaseIH MXM140 Power | |
| Engine | 142 hp 105.9 kW |
| PTO (claimed) | 115 hp 85.8 kW |
| Drawbar (tested) | 101.2 hp 75.5 kW |
| PTO (tested) | 121.1 hp 90.3 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Power steering | |
| Differential hydraulic wet disc brakes | |
| Cab standard with air-conditioning. |

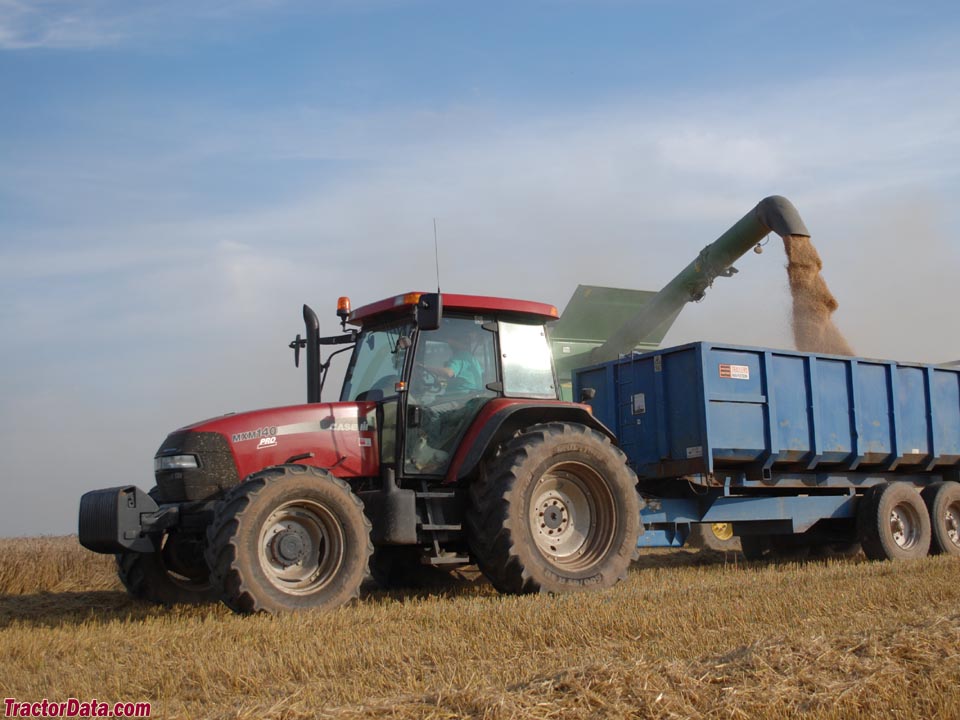

| Photos | |
 | |
 CaseIH MXM140 photos... | |
| Capacity | |
| Fuel | 75 gal 283.9 L |
| Hydraulic system | 23.75 gal 89.9 L |
| Hydraulics | |
| Type | closed-center load sensing |
| Capacity | 23.75 gal 89.9 L |
| Pressure | 2750 psi 189.6 bar |
| Valves | 2 to 5 |
| Pump flow | 28 gpm 106.0 lpm |
| SCV flow | 25 gpm 94.6 lpm |
| Total flow | 44 gpm 166.5 lpm |
| Steering flow | 16 gpm 60.6 lpm |
| Tractor hitch | |
| Rear Type | III/II |
| Control | electronic lower-link sensing |
| Rear lift (at 24"/610mm) | 11,690 lbs 5302 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 540/1000 (1.375) |
| Dimensions & Tires | |
| 2WD Wheelbase | 108.1 inches 274 cm |
| 4WD Wheelbase | 107.2 inches 272 cm |
| Weight | 10472 to 12935 pounds |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 120 |
| Battery CCA | 1300 |
| Battery volts | 12 |
| Battery AH | 176 |
| References | |
 | |
| MXM Series Maxxum Tractors published in 2004, by Case IH |
