Tractors > CaseIH > JX85 Maxxima

CaseIH JX85 Maxxima - tests

CaseIH JX85 Maxxima tractor photo
2002 - 2006   JX Series
Model years
Utility tractor
Series next:CaseIH JX95
Series back:CaseIH JX75
more CaseIH JX85 Maxxima specifications...






OCED Tractor Test 405:

Nebraska summary:2031

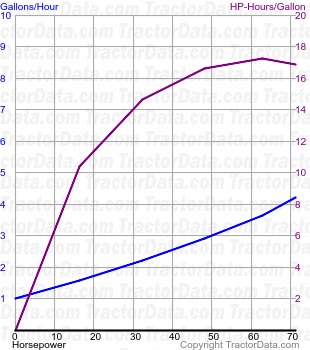

JX85 Maxxima fuel use from test 2031
Test Date:May 2002 - August 2002,
Type:238 diesel 12-speed 4WD
PTO power (rated engine speed):71.1 hp [53.0 kW]
PTO fuel use (engine speed):4.2 gal/hour [15.9 l/hour]
PTO power (rated PTO speed):65.8 hp [49.1 kW]
PTO fuel use (PTO speed):3.9 gal/hour [14.8 l/hour]
Drawbar power (max):58.4 hp [43.5 kW]
Drawbar fuel use (max):4.0 gal/hour [15.1 l/hour]
Drawbar pull (max):4460 lbs [2023 kg]
Max pull gear:I-4
Test report:PDF file
