CaseIH JX75 Maxxima


CaseIH JX75 Maxxima tractor photo
2002 - 2006
Model year
JX Series
Utility tractor
Turk Tractor built
Series map:
JX65
JX75
JX85
65.0hp
75.0hp
77.8hp*
*Estimated engine power for comparison only.
Production
DistributorCaseIH
ManufacturerTurk Tractor
Utility tractor
Built in Turkey
CaseIH JX75 Engine
Iveco 3.6L 4-cyl diesel
Fuel tank24.3 gal
92.0 L
Engine details ...
CaseIH JX75 Transmissions
12-speed mechanical shuttle
20-speed creeper
Transmission details ...
CaseIH JX75 Power
Engine (gross)75 hp
55.9 kW
PTO (claimed)60 hp
44.7 kW
Drawbar (tested)49.5 hp
36.9 kW
PTO (tested)60.6 hp
45.2 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockmechanical rear
Steeringhydrostatic power
Independent wet disc brakes
Two-post ROPS. Cab optional.
Photos
No photos of the CaseIH JX75 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Valves3
Pump flow13.6 gpm
51.5 lpm
Tractor hitch
Rear TypeII
Rear lift7718 lbs*Advertised. 3440 lbs actual lift during testing
3500 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540/540E
 540/1000 OptOptional
Dimensions & Tires
Wheelbase88.5 inches
224 cm
Weight6205 to 6775 pounds
Full dimensions and tires ...
JX75 Serial Number Location

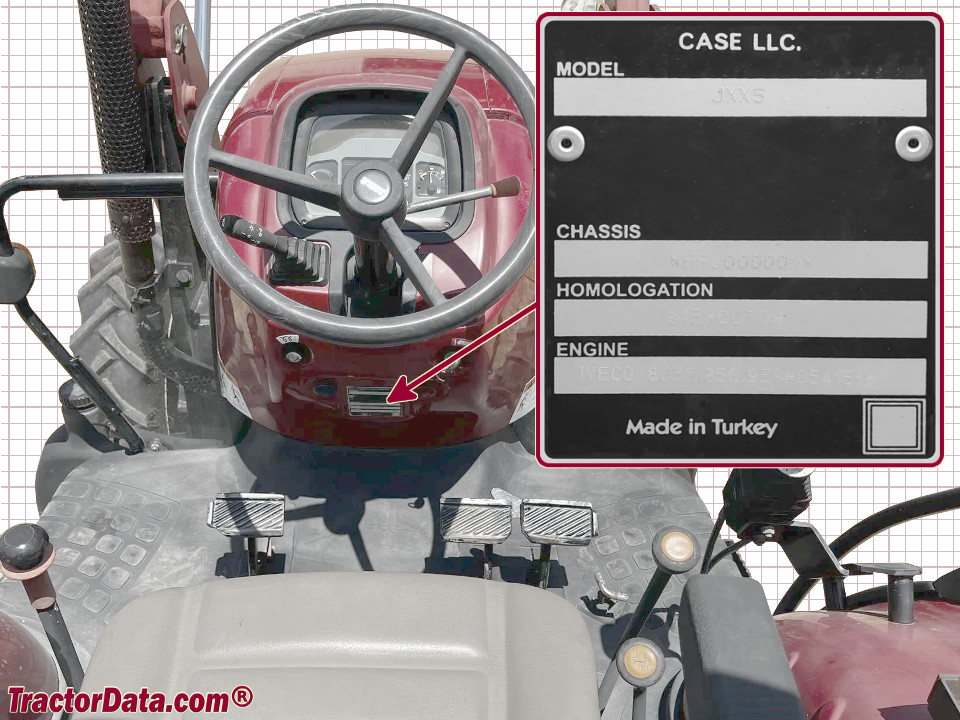

CaseIH JX75 serial number location
Serial number plate located below the steering column.
JX75 Serial Numbers
2003HFJ000001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Battery volts12
