CaseIH JX75 Maxxima - tests

CaseIH JX75 Maxxima tractor photo
2002 - 2006   JX Series
Model years
Utility tractor
Series next:CaseIH JX55
Series back:CaseIH JX65
more CaseIH JX75 Maxxima specifications...






OCED Tractor Test 2017:

Nebraska summary:404

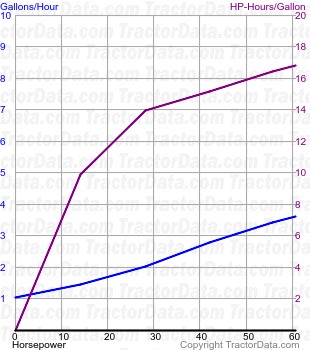

JX75 Maxxima fuel use from test 404
Test Date:February 2002 - June 2002,
Type:220 diesel 12-speed 4WD
PTO power (rated engine speed):60.6 hp [45.2 kW]
PTO fuel use (engine speed):3.6 gal/hour [13.6 l/hour]
PTO power (rated PTO speed):56.3 hp [42.0 kW]
PTO fuel use (PTO speed):3.3 gal/hour [12.5 l/hour]
Drawbar power (max):49.5 hp [36.9 kW]
Drawbar fuel use (max):3.6 gal/hour [13.6 l/hour]
Drawbar pull (max):3930 lbs [1782 kg]
Max pull gear:II-2
Test report:PDF file
