    John Deere 8320

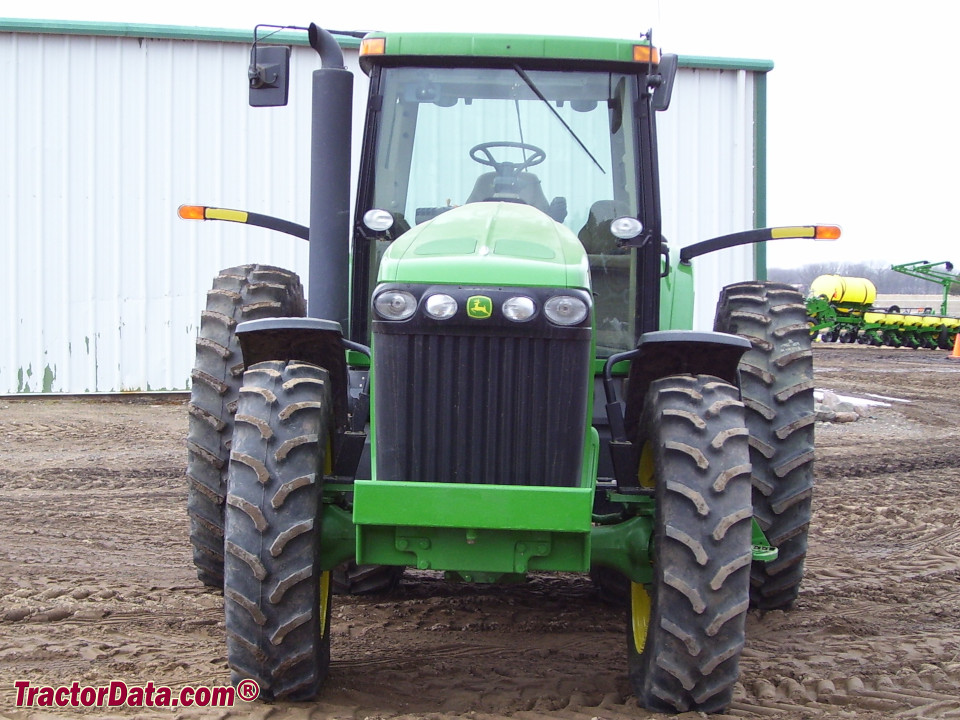

    John Deere 8320 tractor photo
    2002 - 2005   8020 Series
    Row-Crop tractor
    Previous model:John Deere 8310
    Next model:John Deere 8330
    Larger:John Deere 8420
    Smaller:John Deere 8220






    Production:

    Manufacturer:John Deere
    Factory:Waterloo, Iowa, USA


    Variants:

    8320:wheeled tractor
    8320T:crawler


    John Deere 8320 Engine:

       John Deere 8.1L 6-cyl diesel
    full engine details ...


    Capacity:

    Fuel:135 gal [511.0 L]
     160 gal [605.6 L] (optional)
    Hydraulic system:37 gal [140.0 L]
     39.6 gal [149.9 L] (ILS)
    Front hubs:3.6 qts [3.4 L]
     4.2 qts [4.0 L] (ILS)
    Front diff.:14.2 qts [13.4 L]


    3-Point Hitch:

    Rear Type:III,IIIN
    Rear lift:13,730 lbs [6227 kg]
     15,180 lbs [6885 kg] (optional)
    Front Hitch:optional
    Front lift:11,000 lbs [4989 kg]


    Power Take-off (PTO):

    Rear PTO:independent
    Clutch:hydraulic wet discs
    Rear RPMs:1000 (1.75)
     540/1000 (1.375 optional)
    Engine RPMs:540@1975
    1000@2200


    Dimensions & Tires:

    Wheelbase:116.9 inches [296 cm] (4WD)
     115.7 inches [293 cm] (ILS)
     118.9 inches [302 cm] (long frame)
    Weight:20030 to 22450 pounds
    Front tire:16.9R30
    Rear tire:18.4R46
    full dimensions and tires ...

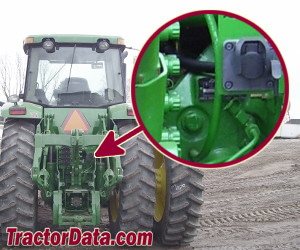

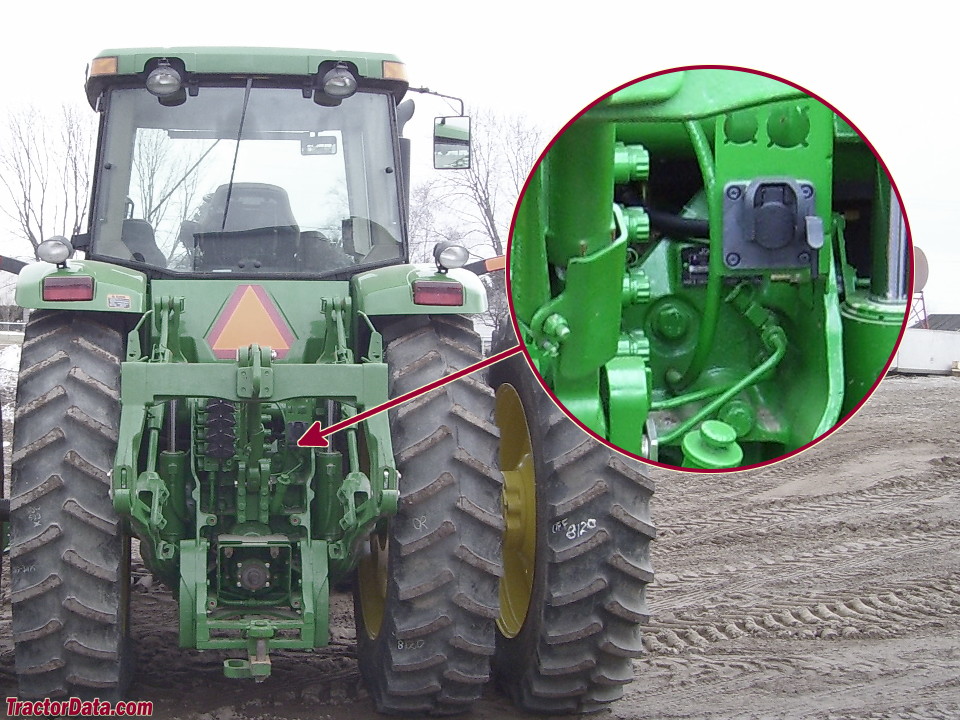

    8320 Serial Numbers:

    Location:Rear of tractor.
    2002: 1001
    2003: 10001
    2004: 20001
    2005: 30001

    how to read serial numbers...



    John Deere 8320 Power:

    Engine (gross):263 hp [196.1 kW]
    Engine (net):250 hp [186.4 kW]
    Engine (max):268 hp [199.8 kW]
    PTO (claimed):215 hp [160.3 kW]
    Drawbar (tested):189.39 hp [141.2 kW]
    PTO (tested):247.89 hp [184.9 kW]
    power test details ...


    Mechanical:

    Chassis:4x4 MFWD 4WD
     4x4 ILS MFWD 4WD (optional)
    Steering:hydrostatic power
    Brakes:hydraulic wet disc
    Cab:Cab standard.


    Hydraulics:

    Type:closed center pressure-flow compensated (PFC)
    Capacity:37 gal [140.0 L]
     39.6 gal [149.9 L] (ILS)
    Pressure:2900 psi [200.0 bar]
    Valves:5
    SCV flow:30 gpm [113.6 lpm]
    Total flow:33.5 gpm [126.8 lpm]
     42.5 gpm [160.9 lpm] (optional)


    Electrical:

    Ground:negative
    Charging system:alternator
    Charging amps:150


    Battery:

    Number:2
    Cold-cranking amps:925
    Volts:12
