John Deere 3320 Transmission


John Deere 3320 tractor photo
2005 - 2013
3000 Twenty Series
Compact Utility tractor
Series:312033203520
3033R
Transmissions overview
12-speed partially synchronized with power shuttle
hydrostatic
Transmission
Transmission:PowrReverser
Type:partially synchronized with power shuttle
Gears:12 forward and reverse
Clutch:112.5mm wet disc
Standard transmission, not available with cab. Four speeds with three ranges and reverser lever. Speed changes are synchronized with clutch pedal. Tractor must be stopped, and clutch used, to shift range. Left-hand reverser may be used without clutching.
Speeds
With 11.2-24 rear tires.
3320 PowrReverser partially synchronized with power shuttle speeds
Transmission
Transmission:Sauer-Danfoss eHydro
Type:hydrostatic
Gears:infinite (3-range) forward and reverse
Controlled by two foot pedals and range shift lever. Tractor must be stopped before shifting ranges. Cruise control standard. SpeedMatch allows maximum speed to be limited. MotionMatch allows acceleration rate to be set. LoadMatch allows engine RPMs to be set, tractor will adjust speed to maintain RPMs.
Speeds
With 11.2-24 rear tires.

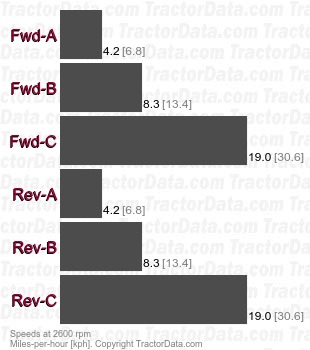

3320 eHydro hydrostatic speeds
Transmission
Transmission:eHydro AutoHST
Type:hydrostatic
Gears:infinite (3-range) forward and reverse
AutoHST provides an automobile-style control to the eHydro transmission. A single foot pedal controls engine RPMs and transmission speed, with a column-mounted shifter to select forward, neutral, or reverse.
