Tractors > John Deere > 4310

John Deere 4310 - transmission

John Deere 4310 tractor photo
2002 - 2004   4000 Ten Compact Series
Compact Utility tractor
Previous model:John Deere 4300
Series next:John Deere 4410
Series back:John Deere 4210
more John Deere 4310 specifications...






Transmission:

Transmission:SyncShift
Type:partially synchronized
Gears:9 forward and 3 reverse
Oil capacity:25.2 qts [23.8 L]
Three gears (1-3) plus reverse in three ranges (A-C). Gears can be shifted on the move using the clutch. Tractor must be stopped to shift ranges.
Speeds:With 11.2-24 rear tires.

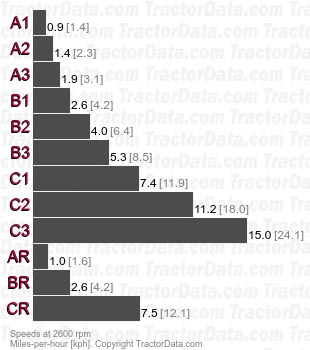

4310 SyncShift partially synchronized speeds


Transmission:

Transmission:eHydro
Type:hydrostatic
Gears:infinite (3-range) forward and reverse
Oil capacity:27.2 qts [25.7 L]
Three-range hydrostatic transmission with foot pedals and cruise control. Tractor must be stopped to shift ranges. Automotive cruise control option allows set speed to be adjusted with rocker switch. SpeedMatch option allows a maximum speed to be set and full pedal travel used to achive that speed. LoadMatch option prevents the tractor from stalling during heavy loads. The MotionMatch option enables the acceleration rate to be set to fast or slow.
Speeds:With 11.2-24 rear tires.
4310 eHydro hydrostatic speeds


Transmission:

Transmission:ePowrReverser
Type:power shuttle
Gears:12 forward and reverse
Oil capacity:25.2 qts [23.8 L]
Four gears (1-4) in three ranges (A-C) with reverser lever. Gears are synchronized and may be shifted on the move using the clutch. Tractor must be stopped to shift ranges. Forward/reverse direction changes may be done on the move, without the clutch, by using the reverser lever.
Speeds:With 11.2-24 rear tires.

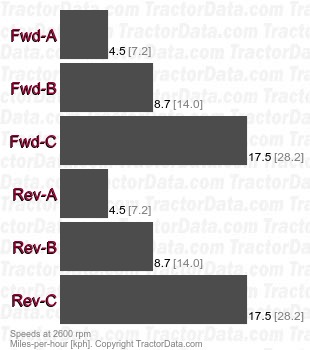

4310 ePowrReverser power shuttle speeds
