Tractors > Kioti > LK3054

Kioti LK3054

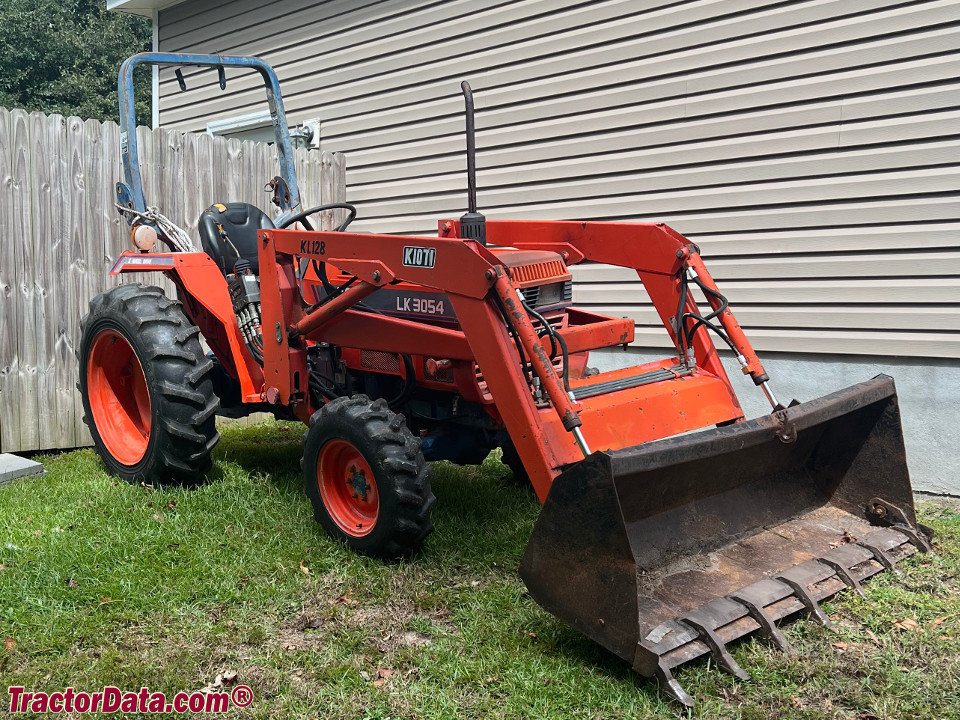

Kioti LK3054 tractor photo
1993 - 2003
Compact Utility tractor
Next model:Kioti LK30
Kioti LK3054XS






Production:

Manufacturer:Kioti (a part of Daedong)
Factory:Daegu, South Korea
Original price (USD):$14,000


Variants:

LK3052:2WD
LK3054:4WD


Kioti LK3054 Engine:

   Daedong 1.4L 3-cyl diesel
full engine details ...


Capacity:

Fuel:7.5 gal [28.4 L]


3-Point Hitch:

Rear Type:I
Rear lift (at ends):2150 lbs [975 kg]


Power Take-off (PTO):

Rear PTO:live (two-stage clutch)
Rear RPM:540/1000
Front RPM:2600


Dimensions & Tires:

Wheelbase:64.6 inches [164 cm]
Weight:2974 lbs [1349 kg]
Front tire:9.5-16
Rear tire:14.9-24
full dimensions and tires ...


LK3054 Serial Numbers:


how to read serial numbers...



Kioti LK3054 Power:

Engine (gross):30.5 hp [22.7 kW]
PTO (claimed):24.5 hp [18.3 kW]


Mechanical:

Chassis:4x4 MFWD 4WD
Steering:power
Brakes:wet disc
Cab:Two-post foldable ROPS.


Hydraulics:

Type:open center
Pump flow:7 gpm [26.5 lpm]


Battery:

Number:1
Volts:12
