John Deere 9120 Transmission

John Deere 9120 tractor photo
2002 - 2007
9020 Series
Four-wheel Drive (4WD) tractor
Transmissions overview
24-speed partial power shift
18-speed full power shift
Transmission:John Deere PowerSync
Type:partial power shift
Gears:24 forward and 6 reverse
Oil capacity:136 qts
128.7 L
 140 qts
132.5 L (with PTO)
Four ranges (A-D) and three gears (1-3) with high-low power shift. Synchronized shifting between ranges A-B, B-C, and C-D. Gear shifts are synchronized between 1-R, 1-2, and 2-3. Reverse gear does not operate in D range.
With 20.8R42 tires.
9120 PowerSync partial power shift speeds
Transmission:John Deere Powershift
Type:full power shift
Gears:18 forward and 6 reverse
With 20.8R42 tires.

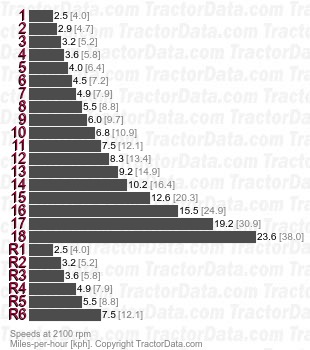

9120 Powershift full power shift speeds
