John Deere 9520 Transmission

John Deere 9520 tractor photo
2002 - 2007
9020 Series
Four-wheel Drive (4WD) tractor
Transmission:John Deere Powershift
Type:full power shift
Gears:18 forward and 6 reverse
Oil capacity:141.6 qts
134.0 L
 145.6 qts
137.8 L (with PTO)
With 800/70R38 rear tires.

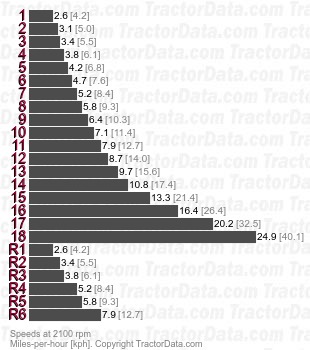

9520 Powershift full power shift speeds
