Kubota M8580
| | 1991 - 1999 |
| M80 Series | | Utility tractor |
|
| Production |
| Manufacturer | Kubota
|
| Utility tractor |
| Kubota M8580 Power |
| Engine (net) | 85 hp
63.4 kW
|
| PTO (claimed) | 80 hp
59.7 kW
|
| Mechanical |
| Four-wheel drive |
| Power steering |
| Hydraulic wet disc brakes |
| Four-post ROPS. Cab optional. |
| Hydraulics |
| Type | open center
|
| Valves | 2 or 3
|
| Pump flow | 21.1 gpm
79.9 lpm
|
| Total flow | 29.6 gpm
112.0 lpm
|
| Steering flow | 8.5 gpm
32.2 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | position and draft control
|
| Rear lift (at 24"/610mm) | 5809 lbs
2634 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | hydraulic wet disc
|
| Rear RPM | 540/1000
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Battery volts | 12
|
| References |
 |

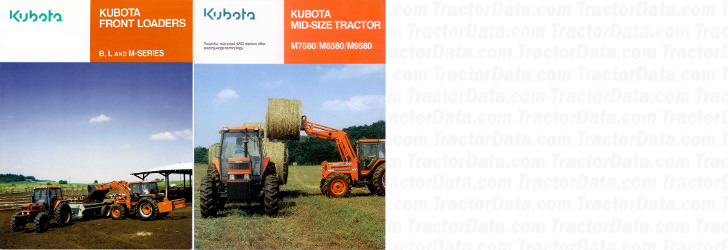

| Front Loaders B, L and M-Series published in 1994, by Kubota |
| Mid-Size Tractor M7580/M8580/M9580 published in 1993, by Kubota |
| Page information |
| Contact: Peter Easterlund |
| Updated on January 26, 2023 |
| Copyright 2023 TractorData LLC |
