Kubota M6800

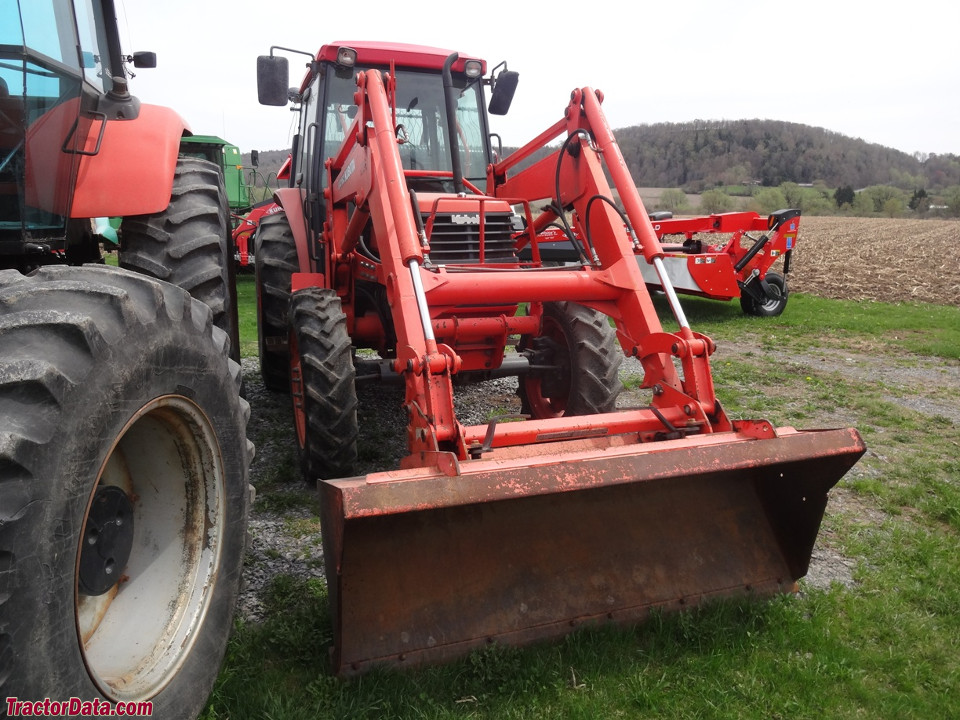

Kubota M6800 tractor photo
1997 - 2005
M Series
Utility tractor
Series map:
M5700
M6800
M8200
61.6hp
70.9hp
85.3hp
Production
ManufacturerKubota
Utility tractor
Built in Japan
Variants
M6800F2WD
M6800DT4WD
Kubota M6800 Engine
Kubota 3.3L 4-cyl diesel
ROPS Fuel tank17.2 gal
65.1 L
Cab Fuel tank25.1 gal
95.0 L
Engine details ...
Kubota M6800 Transmissions
8-speed synchronized shuttle
8-speed power shuttle
Transmission details ...
Kubota M6800 Power
Engine70.9 hp
52.9 kW
PTO (claimed)62 hp
46.2 kW
Drawbar (tested)57 hp
42.5 kW
PTO (tested)63.3 hp
47.2 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockmechanical rear
Power steering
Two-post folding ROPS. Cab optional with air-conditioning.
Hydraulics
Typeopen center
Valves1
Pump flow11 gpm
41.6 lpm
Tractor hitch
Rear TypeII/I
Controlposition control and top-link draft sensing
Rear lift (at 24"/610mm)3310 lbs*Advertised. Actual tested lift capacity was 2,760 pounds.
1501 kg
Rear Armstelescopic stabilizers and link ends
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear RPM540
Engine RPM540@2300
Dimensions & Tires
ROPS Wheelbase80.7 inches
204 cm
Cab Wheelbase83.7 inches
212 cm
Weight5055 to 5712 pounds
Rear tire7.50-16
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps45
Cab Charging amps60
Battery volts12
References

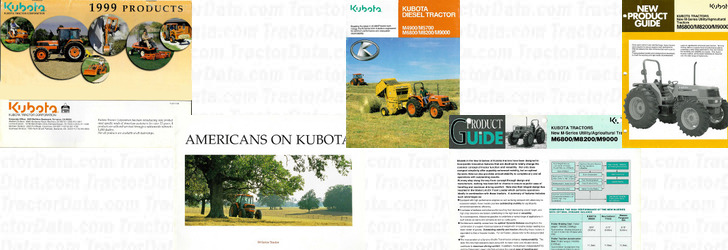

M6800 references literature
1999 Products published by Kubota
Americans on Kubota published in 2000
Diesel Tractor M4900/M5700/M6800/M8200/M9000 published in 2003, by Kubota
Product Guide: New M-Series Utility/Agricultural Tractors published in 1997, by Kubota
Product Guide: M-Series Utility/Agricultural Tractors published in 1998, by Kubota
