Tractors > Kubota > M5950

Kubota M5950 - transmission

Kubota M5950 tractor photo
1983 - 1993   M50 Series
Utility tractor
Series next:Kubota M6950
Series back:Kubota M4950
more Kubota M5950 specifications...






Transmission:

Type:synchronized
Gears:12 forward and 4 reverse
Clutch:dry dual 11.2-inch plate
Oil capacity:50.8 qts [48.1 L]

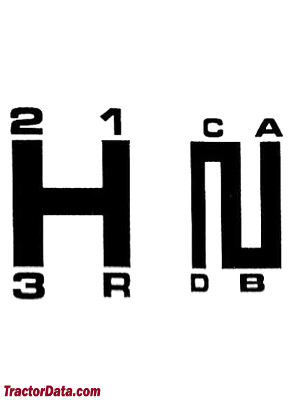

Three gears (1-3) plus reverse in four ranges (A-D). Shifts between gears are synchronized.

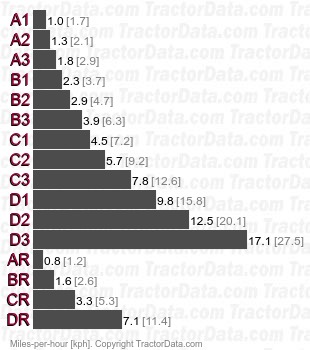

Speeds:With 16.9-28 rear tires.
M5950  synchronized speeds
