Kubota M6950 Transmission


Kubota M6950 tractor photo
1983 - 1993
M50 Series
Utility tractor
Series map:
M5950
M6950
M7950
61.0hp
71.0hp
81.0hp
Transmission
Typesynchronized
Gears12 forward and 4 reverse
Clutchsingle dry plate
Oil capacity52.8 qts
50.0 L
Three gears (1-3) plus reverse in four ranges (A-D). Shifts between gears are synchronized.

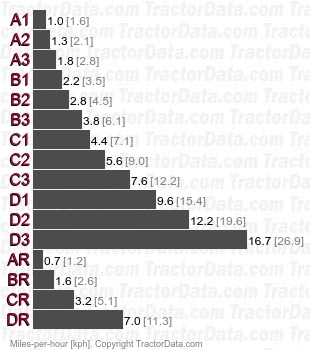

Speeds
With 18.4-28 rear tires.
M6950  synchronized speeds

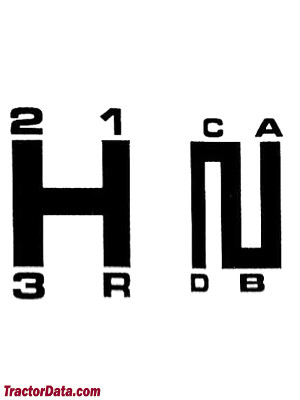

Shift Pattern
Kubota M6950 transmission controls
