| | 1991 - 1997 |
| Utility tractor |
|
Series map:
L4850
L5450
53.0hp
59.5hp
| Transmissions overview |
| 8-speed mechanical shuttle |
| 8-speed hydraulic shuttle |
| Transmission |
| Type | mechanical shuttle
|
| Gears | 8 forward and reverse
|
| Clutch | dry disc
|
| Oil capacity | 45.5 qts
43.1 L
|
| Four gears in two ranges with reverser lever. |

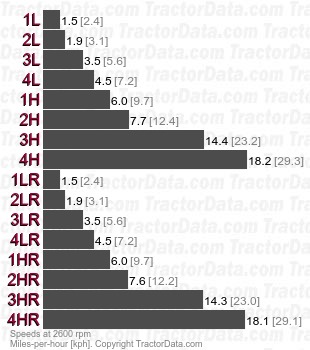

| Speeds |
| With 14.9-28 R1 rear tires. |
|
| Transmission |
| Type | hydraulic shuttle
|
| Gears | 8 forward and reverse
|
| Clutch | wet disc
|
| Oil capacity | 45.5 qts
43.1 L
|
| Four gears in two ranges with reverser lever. |
| Speeds |
| With 14.9-28 R1 rear tires. |
|
