Kubota L4850

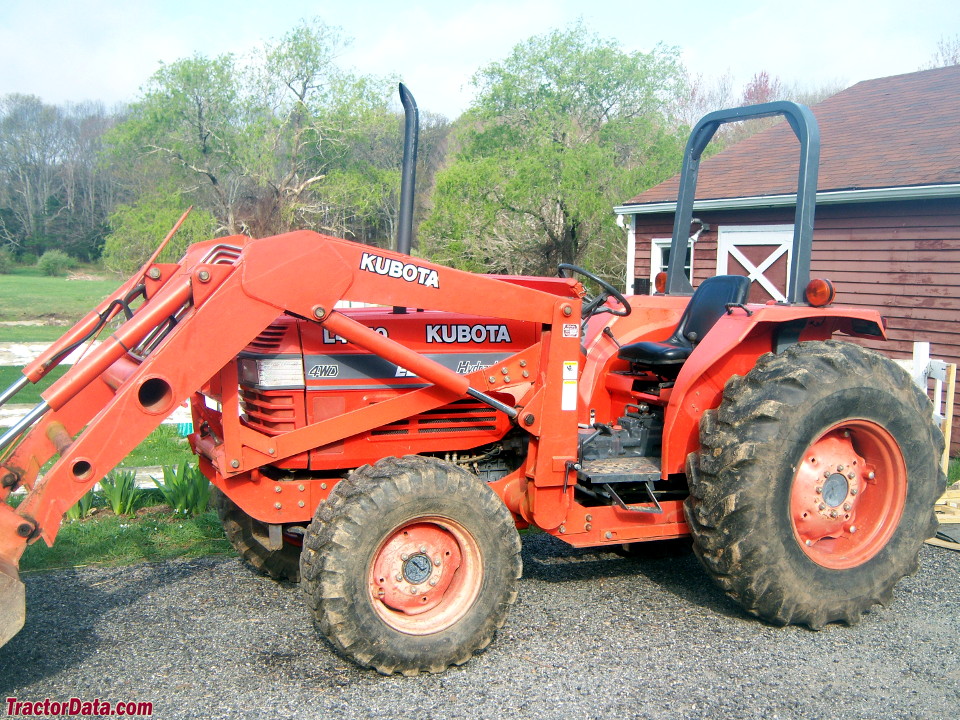

Kubota L4850 tractor photo
1991 - 1997
Utility tractor
Series map:
L4350
L4850
L5450
47.5hp
53.0hp
59.5hp
Production
ManufacturerKubota
Utility tractor
Kubota L4850 Engine
Kubota 2.5L 5-cyl diesel
Engine details ...
Kubota L4850 Transmissions
8-speed mechanical shuttle
8-speed hydraulic shuttle
Transmission details ...
Kubota L4850 Power
Engine (gross)53 hp
39.5 kW
PTO (claimed)42 hp
31.3 kW
Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post fixed ROPS.
Capacity
Fuel15.9 gal
60.2 L
Hydraulic system11.4 gal
43.1 L
Front hubs2.9 qts (each)
2.7 L
Front diff.6.6 qts
6.2 L
Hydraulics
Typeopen center
Capacity11.4 gal
43.1 L
Pump flow11 gpm
41.6 lpm
Tractor hitch
Rear TypeI
Controlposition and draft control
Rear lift (at ends)3300 lbs
1496 kg
Rear lift (at 24"/610mm)3200 lbs
1451 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM540/750 (1.375)
Engine RPM540@2243
750@2391
Dimensions & Tires
Wheelbase76.4 inches
194 cm
Weight4080 lbs
1850 kg
Front tire8.3-20
Rear tire13.6-28
Full dimensions and tires ...
L4850 Serial Numbers
Location:Left side of transmission housing, on operator platform.
Electrical
Groundnegative
Battery volts12
Battery AH110
 160 OptOptional
References
L4850 references literature
Backhoes published in 1992, by Kubota
Backhoes published in 1994, by Kubota
Front Loaders B, L and M-Series published in 1994, by Kubota
Product Catalog published in 1990, by Kubota
Diesel Tractor L4350/L4850/L5450 published in 1994, by Kubota
Operator's Manual L4350-L4850-L5450 (32550-1971-4)
