Tractors > Kubota > L2500

Kubota L2500

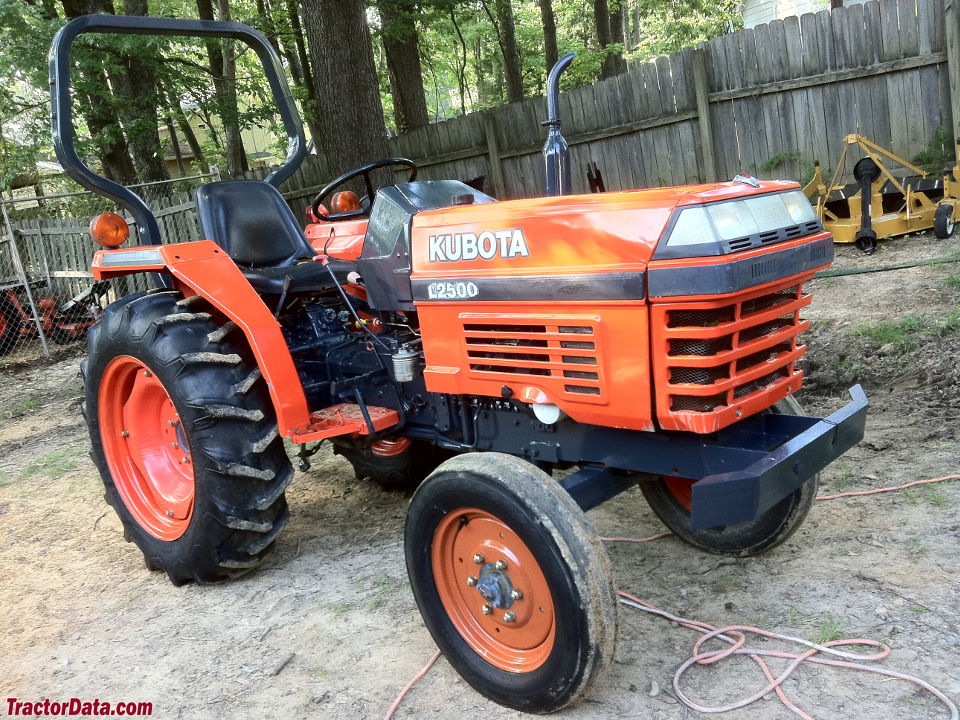

Kubota L2500 tractor photo
1998 - 2000   Standard L Series
Compact Utility tractor
Next model:Kubota L2600






Production:

Manufacturer:Kubota


Variants:

L2500F:2WD
L2500DT:4WD


Kubota L2500 Engine:

   Kubota 1.4L 3-cyl diesel
full engine details ...


Capacity:

Fuel:7.7 gal [29.1 L]


3-Point Hitch:

Rear lift:1985 lbs [900 kg]


Power Take-off (PTO):

Rear RPM:540


Dimensions & Tires:

Wheelbase:61.2 inches [155 cm]
Weight:2700 lbs [1224 kg]
Front tire:5.00-15
Rear tire:11.2-24
full dimensions and tires ...


Kubota L2500 attachments:

 front-end loader
all L2500 attachments ...


L2500 Serial Numbers:


how to read serial numbers...



Kubota L2500 Power:

Engine:27 hp [20.1 kW]
PTO (claimed):22.5 hp [16.8 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:manual
Steering:power*Optional
Cab:Two-post ROPS


Hydraulics:

Type:open center
Pump flow:4.6 gpm [17.4 lpm]


Electrical:

Ground:negative


Battery:

Volts:12
