Kubota L210


Kubota L210 tractor photo
1972 - 1973
Compact Utility tractor
Production
ManufacturerKubota
Compact Utility tractor
Built in Japan
Kubota L210 Engine
Kubota 1.1L 2-cyl diesel
Engine details ...
Kubota L210 Power
Engine (gross)21 hp
15.7 kW
Engine (net)20 hp
14.9 kW
Drawbar (tested)14.06 hp
10.5 kW
PTO (tested)19.10 hp
14.2 kW
Performance test details ...
Mechanical
Two-wheel drive
Manual steering
Differential mechanical expanding shoe brakes
Open operator station. ROPS available as a retro-fit.
Capacity
Fuel6.34 gal
24.0 L
Hydraulic system7.4 gal
28.0 L
Hydraulics
Capacity7.4 gal
28.0 L
Pressure1420 psi
97.9 bar
Total flow2.85 gpm
10.8 lpm
Tractor hitch
Rear TypeI
Rear lift (at ends)2050 lbs
929 kg
Power Take-off (PTO)
Rear RPM650/990
Dimensions & Tires
Wheelbase59 inches
149 cm
Weight2160 lbs
979 kg
Front tire4.00-15
Rear tire9./9-24
Full dimensions and tires ...
Electrical
Groundnegative
Battery volts12
References

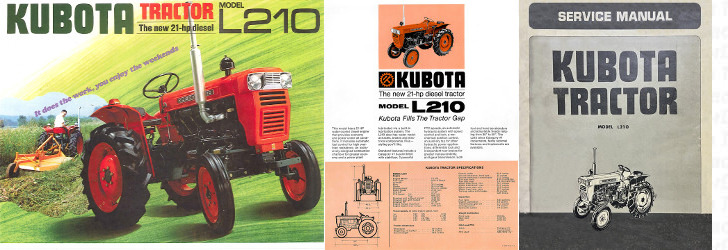

L210 references literature
Model L210 published in 1971, by Kubota
Service Manual L210
