    Kubota B2400

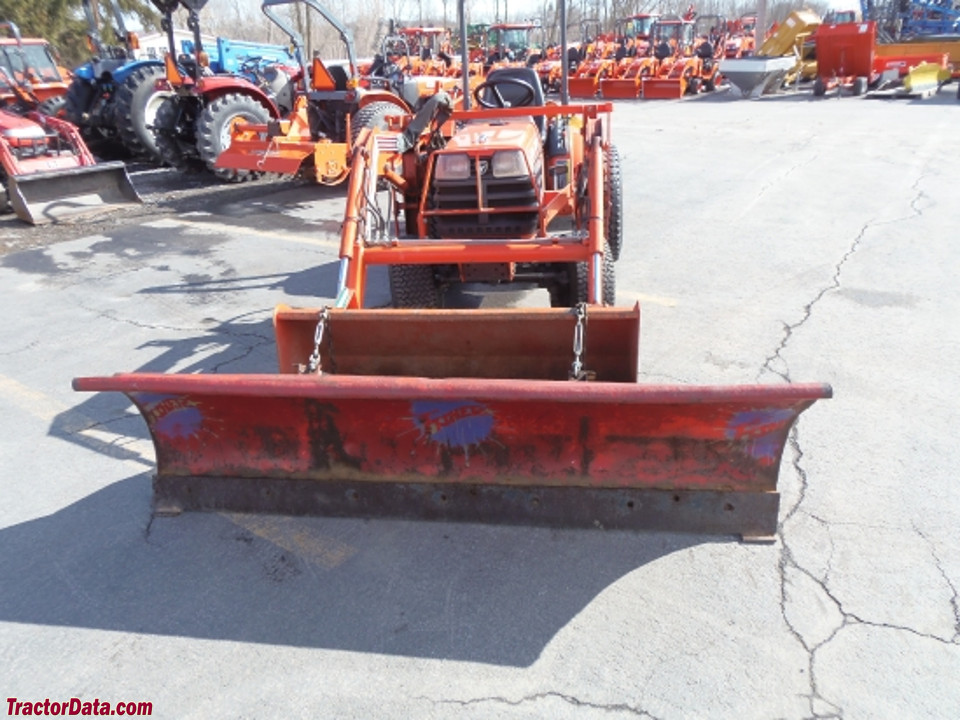

    Kubota B2400 tractor photo
    1995 - 1999
    Compact Utility tractor
    Smaller:Kubota B2100






    Production:

    Manufacturer:Kubota


    Kubota B2400 Engine:

       Kubota 1.1L 3-cyl diesel
    full engine details ...


    Capacity:

    Fuel:6.3 gal [23.8 L]
    Hydraulic system:3.2 gal [12.1 L]


    3-Point Hitch:

    Rear Type:I
    Control:position control
    Rear lift (at ends):1,280 lbs [580 kg]
    Rear lift (at 24"/610mm):1,015 lbs [460 kg]


    Power Take-off (PTO):

    Rear PTO:live
    Rear RPMs:540 (1.375)
    Engine RPMs:540@2584
    Mid RPMs:2537 (Kubota 10-tooth)
    Engine RPMs:2537@2600


    Dimensions & Tires:

    Wheelbase:59.4 inches [150 cm]
    Weight:1570 lbs [712 kg]
    Front tire:6.50-10
    Rear tire:11.2-16
    full dimensions and tires ...


    B2400 Serial Numbers:


    - Serial numbers unknown -



    Kubota B2400 Power:

    Engine (gross):24 hp [17.9 kW]
    PTO (claimed):18 hp [13.4 kW]


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Steering:power
    Brakes:wet disc
    Cab:ROPS.


    Hydraulics:

    Type:open
    Capacity:3.2 gal [12.1 L]
    Pump flow:5.8 gpm [22.0 lpm]


    Electrical:

    Ground:negative


    Battery:

    Number:1
    Cold-cranking amps:390
    Volts:12
