    Kubota B2150

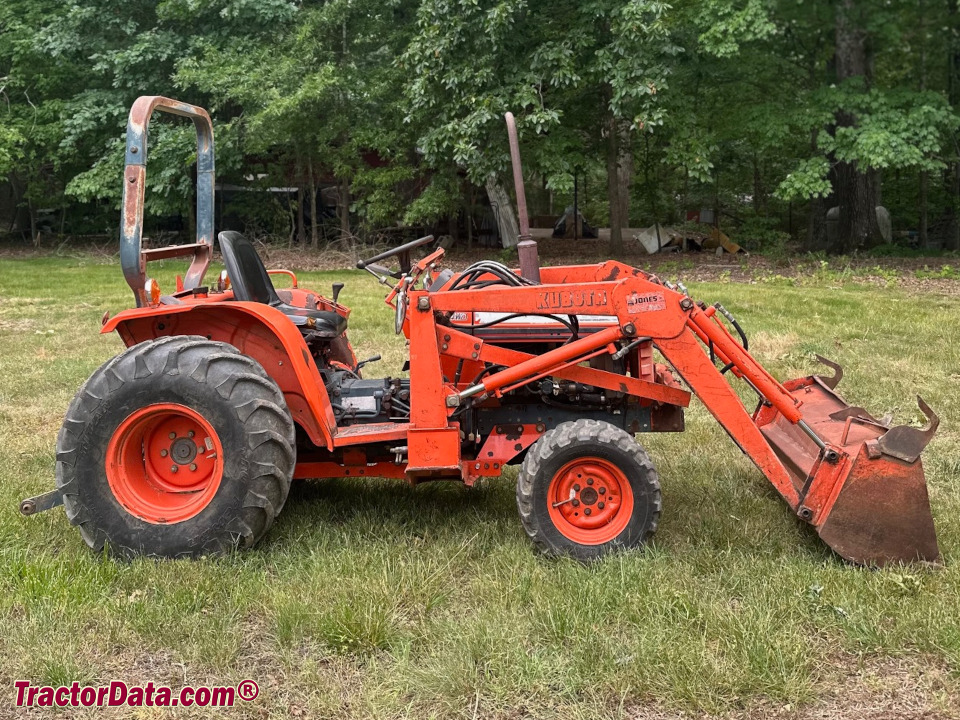

    Kubota B2150 tractor photo
    1988 - 1996
    Compact Utility tractor
    Previous model:Kubota B9200
    Smaller:Kubota B1750






    Production:

    Manufacturer:Kubota


    Kubota B2150 Engine:

       Kubota 1.2L 4-cyl diesel
    full engine details ...


    Capacity:

    Fuel:7.4 gal [28.0 L]
    Hydraulic system:4.75 gal [18.0 L]


    3-Point Hitch:

    Rear Type:I
    Control:position control
    Rear lift:1014 lbs [459 kg]


    Power Take-off (PTO):

    Rear PTO:live
    Rear RPMs:540
    Mid PTO:standard
    Front PTO:optional


    Dimensions & Tires:

    Wheelbase:63 inches [160 cm]
    Weight:1687 to 1841 pounds
    Front tire:4.00-12
    2WD Rear tire:8.3-24
    full dimensions and tires ...


    Kubota B2150 attachments:

     mowing deck
     front-end loader
    all B2150 attachments ...


    B2150 Serial Numbers:


    - Serial numbers unknown -



    Kubota B2150 Power:

    Engine (gross):24 hp [17.9 kW]
    PTO (claimed):20 hp [14.9 kW] (gear)
     18 hp [13.4 kW] (hydro)


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Steering:manual
     power optional
    Brakes:dry disc
    Cab:Two-post ROPS.


    Hydraulics:

    Type:open
    Capacity:4.75 gal [18.0 L]
    Pump flow:7.4 gpm [28.0 lpm]


    Electrical:

    Ground:negative


    Battery:

    Number:1
    Volts:12
