    Kubota B2100

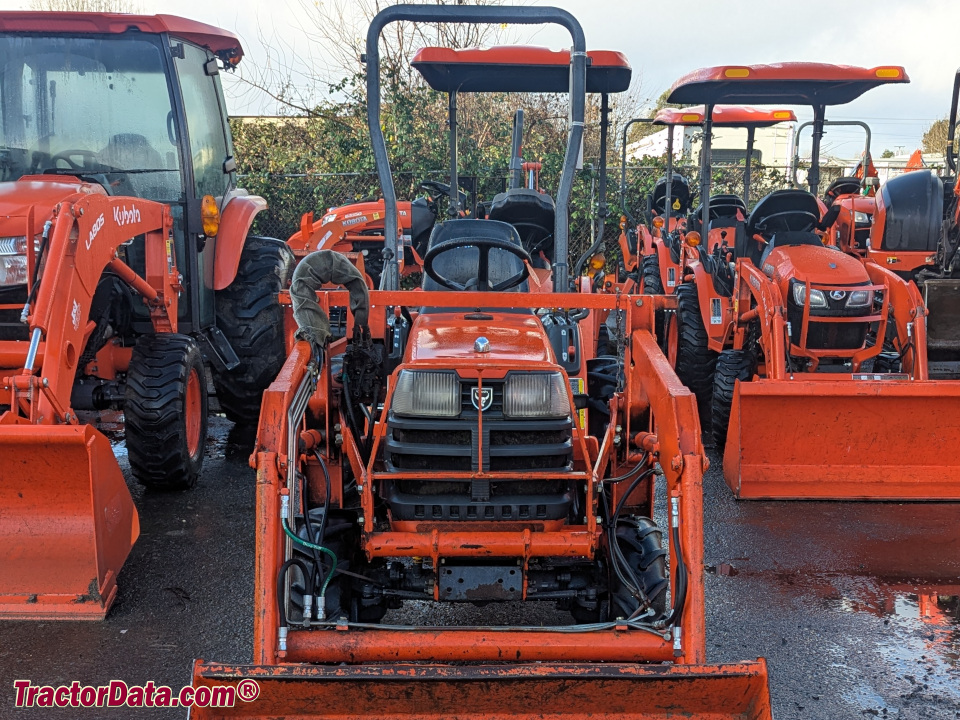

    Kubota B2100 tractor photo
    1995 - 1999
    Compact Utility tractor
    Series next:Kubota B2400
    Series back:Kubota B1700






    Production:

    Manufacturer:Kubota


    Kubota B2100 Engine:

       Kubota 1.0L 3-cyl diesel
    full engine details ...


    Capacity:

    Fuel:6.3 gal [23.8 L]
    Hydraulic system:2.9 gal [11.0 L]


    3-Point Hitch:

    Rear Type:I
    Control:position control
    Rear lift (at ends):1280 lbs [580 kg]
    Rear lift (at 24"/610mm):1015 lbs [460 kg]


    Power Take-off (PTO):

    Rear PTO:live
    Rear RPM:540 (1.375)
    Engine RPM:540@2584
    Mid RPM:2537*Kubota 10-tooth
    Engine RPM:2537@2600


    Dimensions & Tires:

    Wheelbase:59 inches [149 cm]
    Weight:1500 lbs [680 kg]
    Front tire:6-12
    Rear tire:9.5-16
    full dimensions and tires ...


    Kubota B2100 attachments:

     mowing deck
     front-end loader
     backhoe
    all B2100 attachments ...


    B2100 Serial Numbers:

    Location:Clutch/transmission case on right side.

    - Serial numbers unknown -



    Kubota B2100 Power:

    Engine (gross):21 hp [15.7 kW]
    Gear PTO (claimed):17 hp [12.7 kW]
    Hydro PTO (claimed):16 hp [11.9 kW]


    Mechanical:

    Chassis:4x4 MFWD 4WD
    Steering:power
    Brakes:wet disc
    Cab:Two-post ROPS.


    Hydraulics:

    Type:open
    Capacity:2.9 gal [11.0 L]
    Pump flow:5.8 gpm [22.0 lpm]


    Electrical:

    Ground:negative


    Battery:

    Number:1
    Cold-cranking amps:390
    Volts:12
