Tractors > CaseIH > Quadtrac 9380QT

CaseIH Quadtrac 9380QT

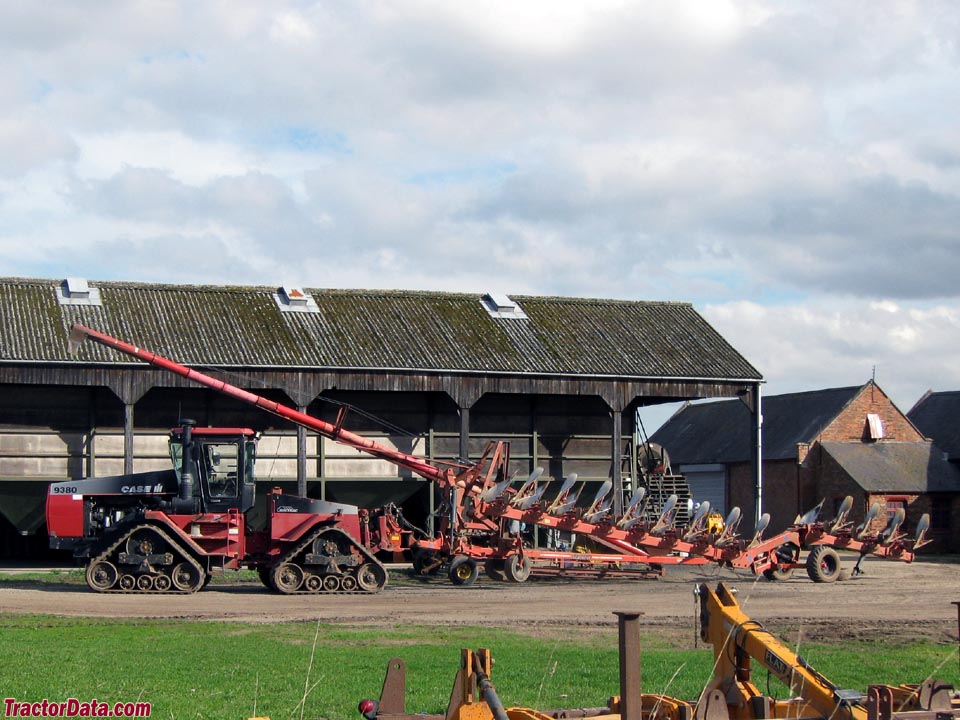

CaseIH Quadtrac 9380QT tractor photo
1998 - 1999   9300 Series
Articulated Crawler tractor
Series back:CaseIH 9370QT






Production:

Manufacturer:CaseIH
Factory:Fargo, North Dakota, USA
Original price (USD)
   $207,000 (1999 )


Variants:

9380:wheeled tractor
9380QT:Quadtrac crawler


CaseIH 9380QT Engine:

   Cummins 14.0L 6-cyl diesel
full engine details ...


Capacity:

Fuel:250 gal [946.3 L]


3-Point Hitch:

Rear Type:IV
Rear lift (at 24"/610mm):17000 lbs [7711 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:1000


Dimensions & Tires:

Wheelbase:148 inches [375 cm]
Weight:44000 lbs [19958 kg]
Front tire:tracks
Rear tire:tracks
full dimensions and tires ...


9380QT Serial Numbers:

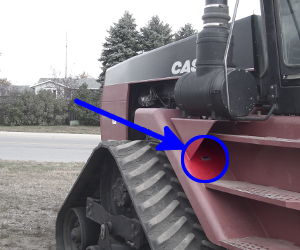

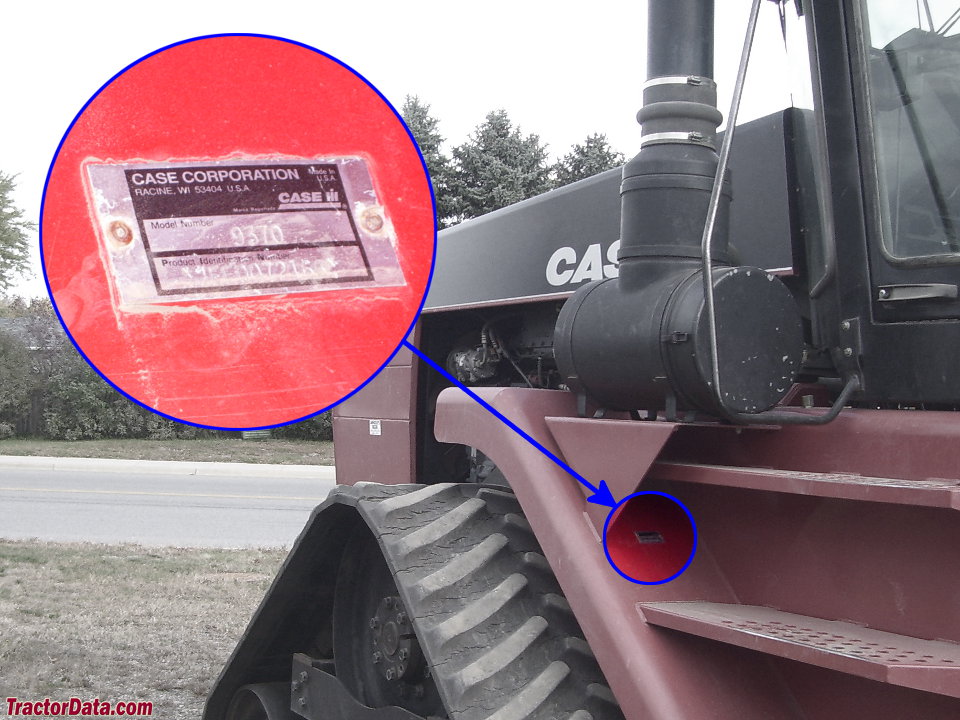

Location:Left-side front fender next to steps.

- Serial numbers unknown -



CaseIH 9380QT Power:

Engine:400 hp [298.3 kW]
PTO (claimed):356 hp [265.5 kW]


Mechanical:

Chassis:crawler
Steering:articulated power
Brakes:wet disc
Cab:Cab standard with air-conditioning.


Hydraulics:

Type:closed center
Pressure:2900 psi [200.0 bar]
Valves:4
Pump flow:27 gpm [102.2 lpm]
Steering flow:31 gpm [117.3 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:125


Battery:

Number:3
Cold-cranking amps:625
Volts:12
