CaseIH 9350 Engine


CaseIH 9350 tractor photo
1996 - 1999
9300 Series
Four-wheel Drive (4WD) tractor
Series map:
9330
9350
9370
240.0hp
310.0hp
360.0hp
Engine Detail
Cummins M11-A310
turbocharged diesel
6-cylinder
liquid-cooled
Displacement660.3 ci
10.8 L
Bore/Stroke4.921x5.787 inches
125 x 147 mm
Power (gross)310 hp
231.2 kW
Air cleanerdual paper elements
Compression16.1:1
Rated RPM2100
Idle RPM850-2300
Starter volts12
Oil capacity38.8 qts
36.7 L
Oil change250 h
Coolant capacity66 qts
62.5 L

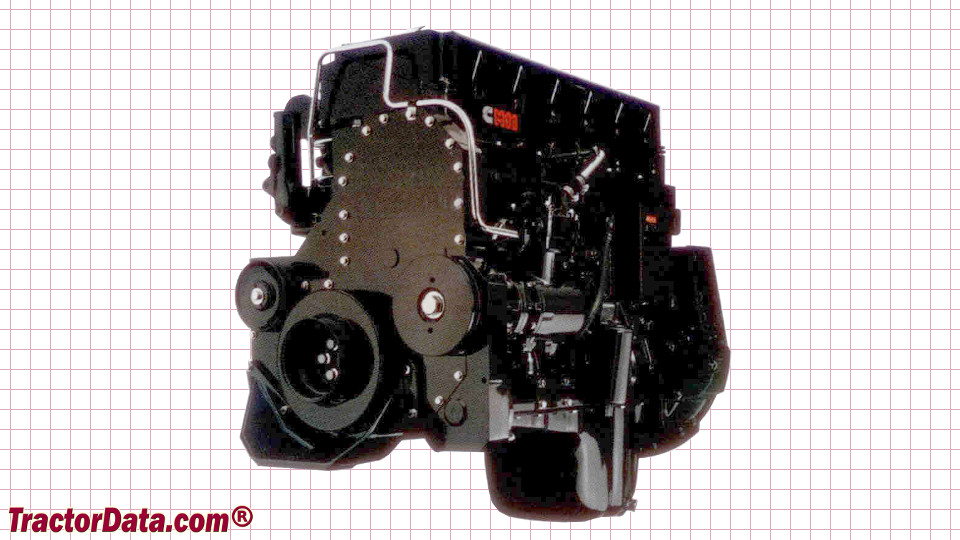

CaseIH 9350 Engine
CaseIH 9350 engine image
