CaseIH 9260 Transmission


CaseIH 9260 tractor photo
1990 - 1995
9200 Series
Four-wheel Drive (4WD) tractor
Series map:
9250
9260
9270
300.0hp
300.0hp
335.0hp
Transmission
Typefull power shift
Gears12 forward and 3 reverse
Clutchhydraulic wet disc
Full power shift transmission operated with two right-hand levers; one for shifting gears and the other for forward/reverse. Skip-Shift feature allows the transmission to quickly shift from first into higher gears (4th, 6th, 8th).

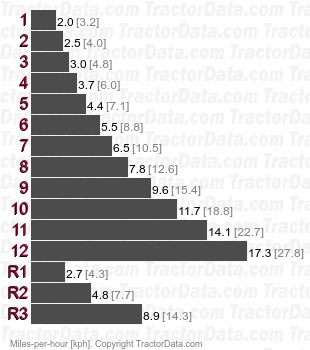

Speeds
With 18.4x38 tires.
9260  full power shift speeds
Shift Pattern
CaseIH 9260 transmission controls
