CaseIH 4894 Transmission

CaseIH 4894 tractor photo
1984 - 1987
4WD 94 Series
Four-wheel Drive (4WD) tractor
Type:partial power shift
Gears:12 forward and 4 reverse
Clutch:hydraulic wet disc
Four ranges (1-4) with three power shift gears (1-3) plus reverse in each range. Both shift levers mounted on the dashboard. Range shift lever is to the left in a H-pattern. Gear shift is an inline pattern on the right.
With 23.1x30 tires.

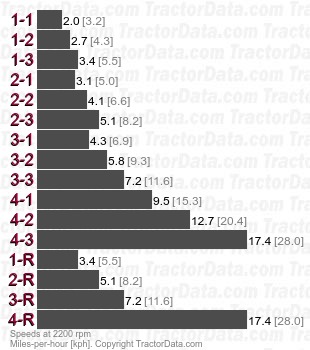

4894  partial power shift speeds
CaseIH 4894  transmission photo
