Tractors > CaseIH > 8930

CaseIH 8930 - tests

CaseIH 8930 tractor photo
1997 - 1998   Magnum 8900 Series
Row-Crop tractor
Previous model:CaseIH 7230
Next model:CaseIH MX220
Series next:CaseIH 8940
Series back:CaseIH 8920
more CaseIH 8930 specifications...






OCED Tractor Test 1735:

Nebraska summary:235

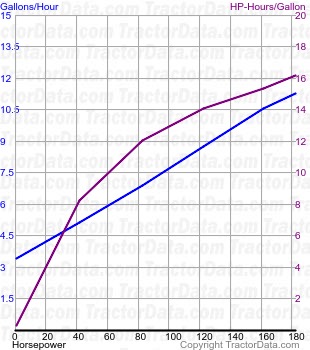

8930 fuel use from test 235
Test Date:September 8 - 25, 1997
Type:Diesel 18-speed 4WD
PTO power (max):198.35 hp [147.9 kW]
PTO fuel use (max):11.2 gal/hour [42.4 l/hour]
PTO power (rated engine speed):182.08 hp [135.8 kW]
PTO fuel use (engine speed):11.3 gal/hour [42.8 l/hour]
Drawbar power (max):156.31 hp [116.6 kW]
Drawbar fuel use (max):11.3 gal/hour [42.8 l/hour]
Drawbar pull (max):17533 lbs [7952 kg]
Max pull gear:5
Test report:PDF file
