Tractors > CaseIH > 8920

CaseIH 8920 - transmission

CaseIH 8920 tractor photo
1997 - 1998   Magnum 8900 Series
Row-Crop tractor
Previous model:CaseIH 7220
Next model:CaseIH MX200
Series next:CaseIH 8930
Series back:CaseIH 8910
more CaseIH 8920 specifications...






Transmission:

Type:full power shift
Gears:18 forward and 4 reverse
Clutch:hydraulic wet disc
Speeds:
8920  full power shift speeds

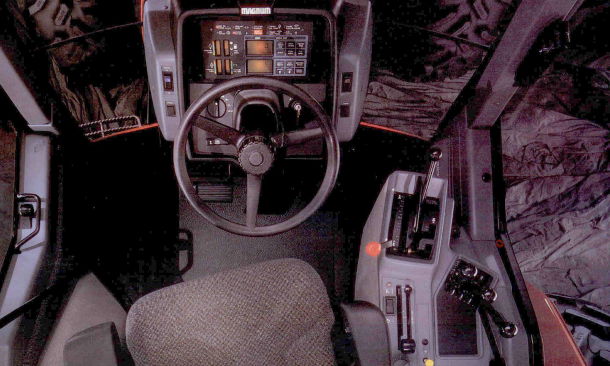

CaseIH 8920  transmission photo



Transmission:

Type:creeper
Gears:24 forward and 6 reverse
Speeds:

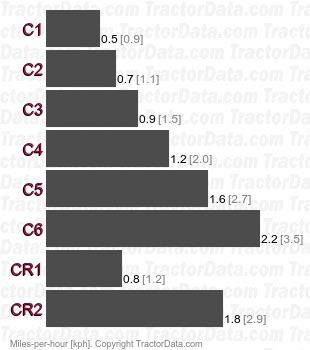

8920  creeper speeds
